Capacitive measuring system IP68 for industrial applications Product Technology

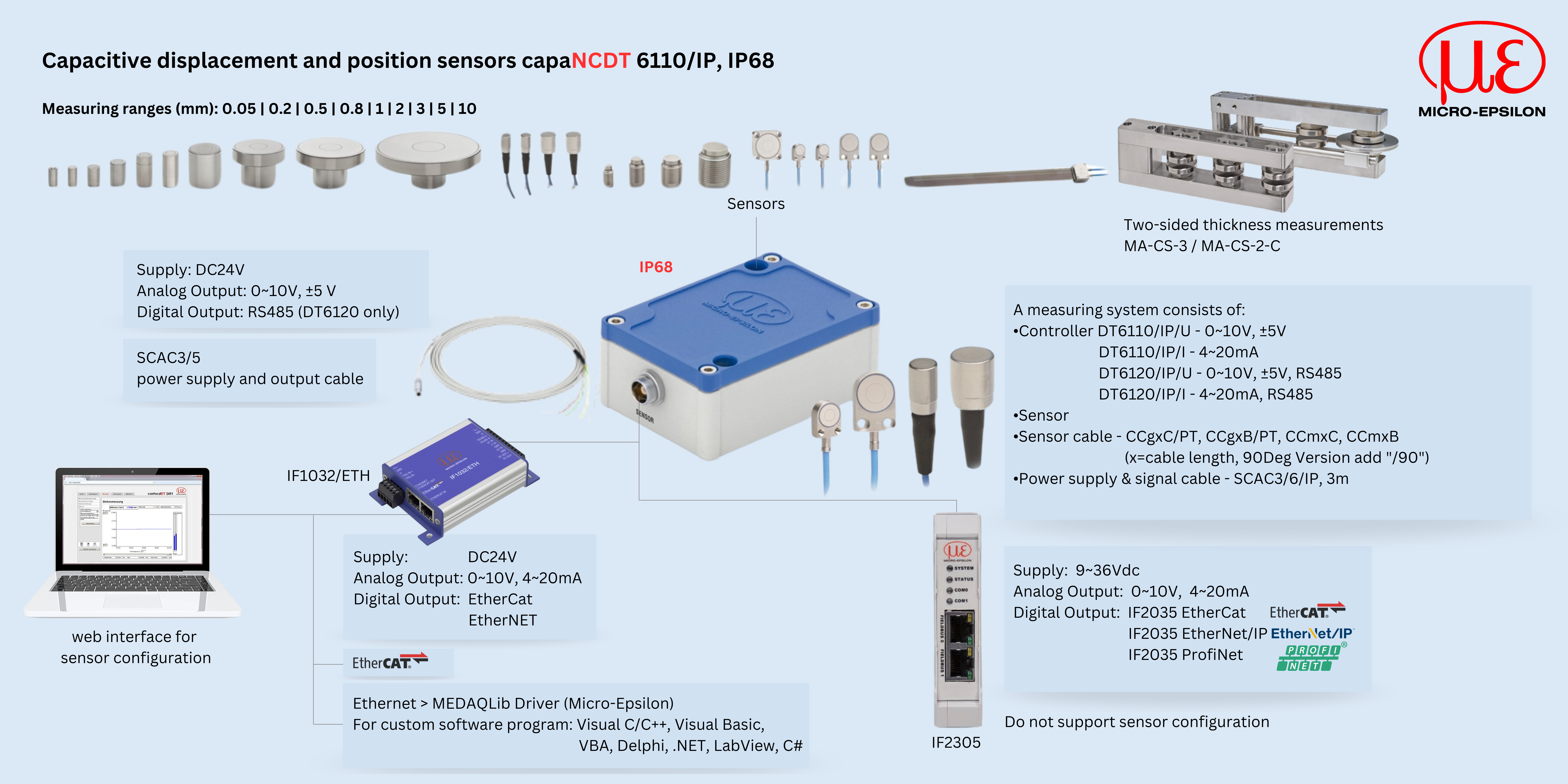

The capaNCDT DT61x0/IP is an industrial-grade, capacitive sensor system for displacement, distance and position measurements. Consisting of a sensor, a sensor cable and a controller, the measuring system is ready for use without any on-site calibration. Due to its very good temperature stability, immunity to magnetic fields and robust design that is protected to IP68, the capaNCDT DT61x0/IP is used for industrial measurement tasks such as air gap measurement in generators and regulation of plant and machinery.

Catalog capaNCDT sensors

Data sheet capaNCDT 61x0/IP

Characteristics

Measuring ranges (mm): 0.5 | 1 | 1.25 | 2 | 3 | 4 | 6
Linearity max. 1 µm
Resolution max. 0.05 µm
Voltage output
Digital RS485 interface (DT6120/IP)
Dust-proof and watertight aluminum die-cast housing (IP68)
Robust and temperature-resistant sensor cable
Broad sensor range (gap sensor/board design / cylindrical sensor / thread sensor)

Industrial-grade, capacitive controller with voltage output – DT6110/IP controller

Characteristics

Resolution dynamic 0.02 % FSO (1 kHz)
Frequency response 1 kHz (-3 dB)
Output 0...10 V (short circuit proof)

Protected to IP68, the DT6110/IP capacitive controller is designed for measurement tasks in industrial environments. The DT6110/IP controller is available with either a voltage or current output, and can also be used in confined spaces due to its compact design.

Industrial-grade, capacitive controller with RS485 interface – DT6120/IP controller

Characteristics

Resolution dynamic 0.2 % FSO (1 kHz)
Frequency response 1 kHz (-3 dB)
Output 0...10 V (short circuit proof)
Digital interface RS485

Classified to IP68, the DT6120/IP capacitive controller is designed for measurement tasks in industrial applications. In addition to either a voltage or current output, the DT6120/IP controller offers an RS485 interface. Due to its compact design, the controller can also be used in confined spaces.
