    Load Cell | S-Beam



    FUTEK S Beam Load Cells (Tension/Compression) offer a compact design for a variety of applications. Available in standard and metric, the S Beam Load Cell series provides accuracy, compact design features, overload protection (select models), and a wide capacity range to choose from. S Beam Load Cells are also commonly known as Z Beam Load Cells or S Type Load Cells. Capacity are available up to 4500Kg or 10,000 Ibs

    S Beam Jr. Load Cell
    S Beam Load Cell
    S Beam Load Cell 3 mV/V
    Cylindrical S Beam Load Cell (High Capacity/Canister)
    Similar to our entire Load Cell product line the S Beam Load Cells are manufactured in the US and uses metal foil strain gauge technology. Most models can be modified or customized to meet your requirements and most models are available in our inventory making it available for quick delivery.

    High Endurance
    Built in Overload Protection
    High Capacity / Low Capacity
    Compact designs available for tight environments
    In both Tension and Compression
    Metric Threads available
    Single Point Construction
    Operating Temperature of -60° F - 200° F
    Utilizes Metal Foil Strain Gauge Technology


    Load Cells - LRM200 - JR S-Beam Load Cell with Male Thread

    JR S-Beam Load Cell with Male Thread
    100 g~100 Ib

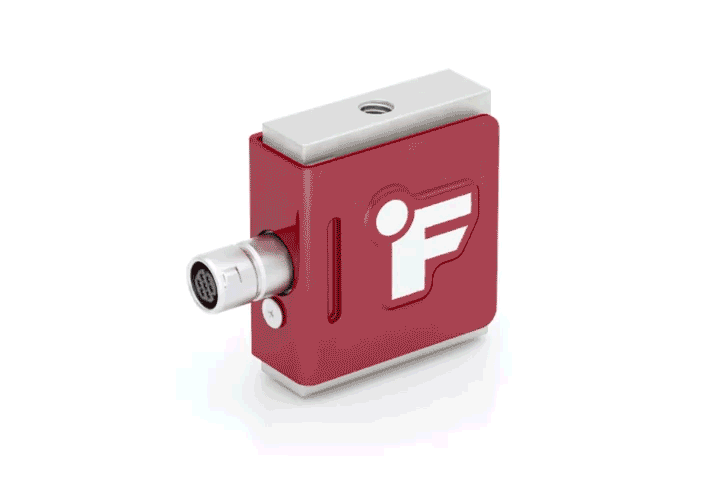

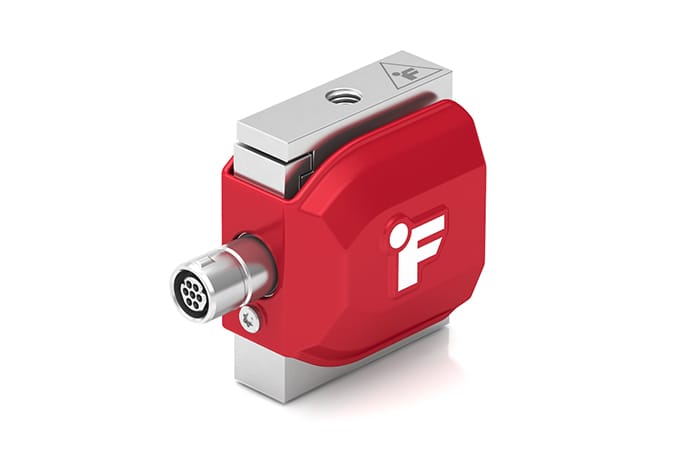

    Miniature S Beam load cell - LSB200 - Jr. Miniature S-Beam Load Cell

    Jr. Miniature S-Beam Load Cell
    10 g~100 Ib


    Jr. Miniature S-Beam Load Cell 2.0
    250 g~100 Ib


    Load Cells - LSB210 - Submersible Jr. Miniature S-Beam Load Cell

    Submersible Jr. Miniature
    S-Beam Load Cell
    100 g~100 Ib


    Load Cells - LSB300 - Tension & Compression Load Cell

    Tension and Compression Load Cell
    50 lb

    Load Cells - LSB302 - S-Beam Tension and Compression Load Cell

    S-Beam Tension and Compression Load Cell
    25~300 Ib

    Load Cells - LSB303 - Tension & Compression Load Cell

    Tension and Compression Load Cell
    50~100 Ib

    Load Cells - LSB350 - S-Beam Tension and Compression Load Cell

    S-Beam Tension and Compression Load Cell
    500~2,000 Ib

    Load Cells - LSB352 - S-Beam Tension and Compression Load Cell

    S-Beam Tension and Compression Load Cell
    500~1,000 Ib

    Load Cells - LSB400 - S-Beam Tension and Compression Load Cell

    S-Beam Tension and Compression Load Cell
    5,000~10,000 Ib
