Lump Detectors



  •

Lump detectors measure the thickness / external diameter of the measurement by measuring the gap between two rollers, as well as the diameters of lumps detected.

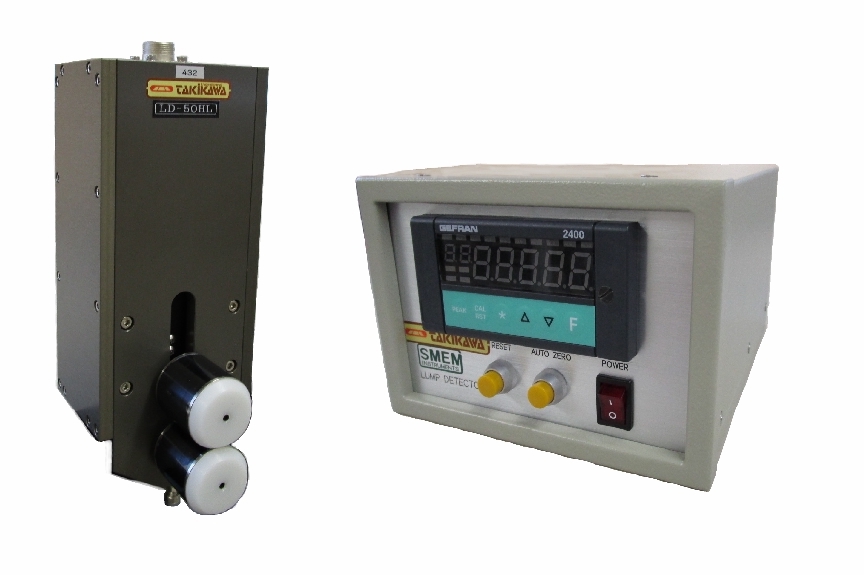

 Model Head : LD-50HL/ Controller : LD-50AH
 Measuring Method Roller Contact
 Measuring Range ±22mm
 Detecting Sensitivity ±50um of Max.
 Resolution 10um
 Display 00.00mm
 Analog Output ±1V/±1mm(Max.±10V)
 Alarm Output Upper, Lower Alarm Lamp, Upper, Lower Alarm Relay contact AC200V 1A
 Power Supply AC90~240V、 50/60Hz 15VA
 Dimension (W×H×D[mm]) Head :  70×125×240 / 2.7kg
Controller : 160X110X205 / 2.5kg
