    New Solartron Metrology Products


    30mm Range Digital Probe

    Full calibration over 30mm

    Accurate absolute sensor an alternative to incremental encoders



    The new DT/30/P Digital Probe provides a full 30 mm of measuring range, while maintaining excellent linearity and repeatability. Unlike many longer range measuring sensors, the DT/30/P is absolute sensor so can never suffer from loss of position often found with incremental encoders.


    Profinet Module

    Profinet® to Orbit®3 Interface Module

    Simple interface to any Profinet® enabled PLC



    The PIM makes it simple to interface a wide range of contact and non contact linear measurement sensors, rotary encoders, temperature and pressure sensors and discrete inputs and outputs via ProfiNet ®. This stand alone, Din Rail mounted module provides one ProfiNet® port and one ORBIT®3 port which can power up to ten sensors;. This can be extended up to a maximum of 150 sensors with the use of  supplementary power modules.

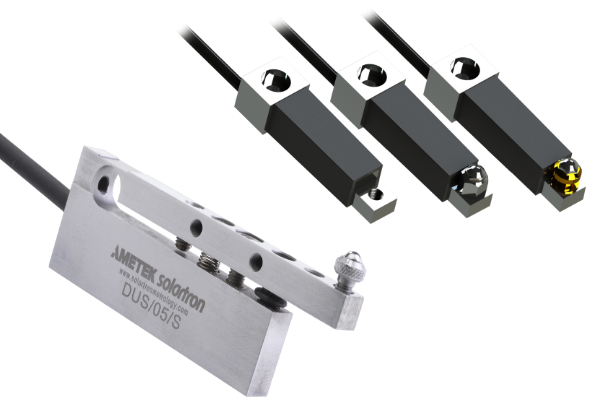

    Single Leaf Flexures SLF DUSM













    Single Leaf Measurement Transducers

    A new range of flexure based measurement sensors designed to measure hard to reach areas such as bores and gaps.



    Flexures can be mounted so that there is little stress through the gauging line enabling precision profiling of moving materials such as rotating shafts, brake discs etc.  Following from Solartron successful range of parallel flexure products the single leaf flexure offers the gauge builder access to even more measurement points. With careful use of extension arms measurements can be made inside slots or between features where a conventional pencil probe cannot reach.



    The standard single leaf flexure is available as both an Orbit Digital product (DUS/0.5/S) or analogue LVDT (AUS/0.25/S)

    The DUS and AUS can be configured to operate in either direction, it can also be supplied with an adjustable tip.



    The Miniature Single Leaf Flexure is another variant of flexure based contact probes. The miniature single leaf flexure has a calibrated range of 0 – 500 microns and provides the means for alternative configurations of contact tip mounting.
