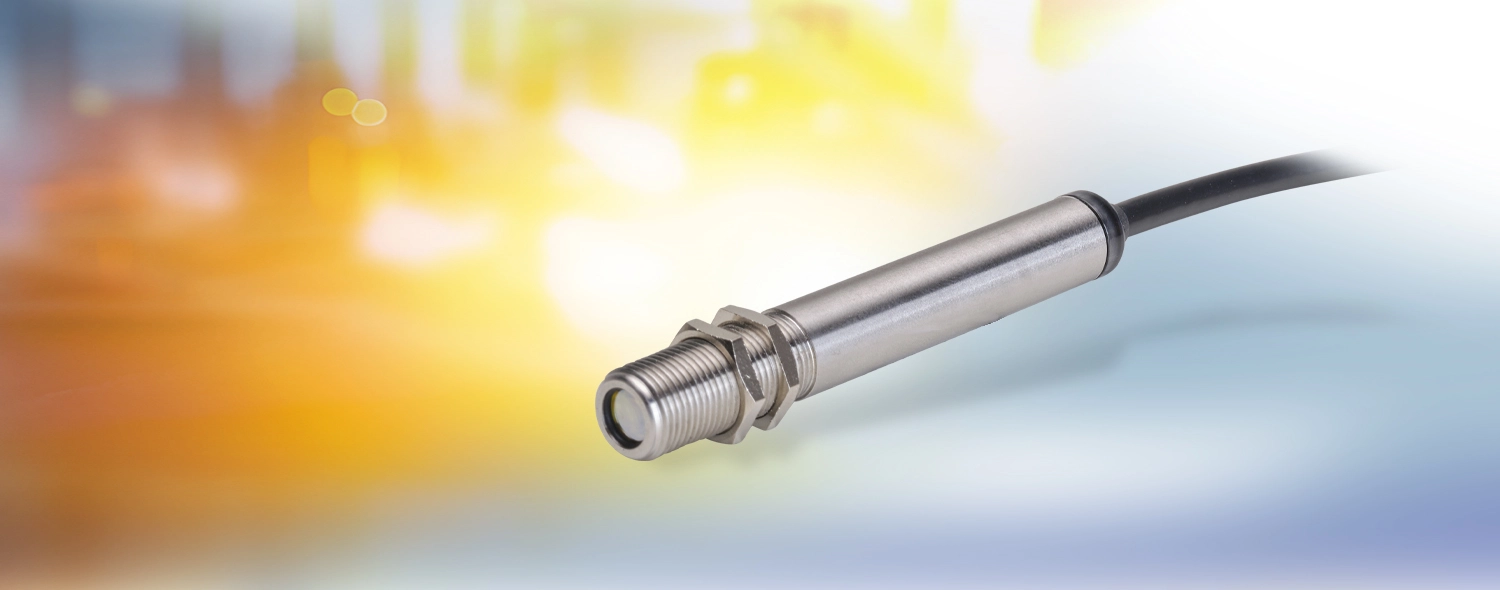

Fully integrated compact pyrometer for precise infrared temperature measurement

Infrared pyrometers from the thermoMETER FI series are robust sensors for non-contact temperature measurement from -40 to +1100 °C. The combination of sensor & controller in one housing is extremely space-saving and simplifies integration. Its ease of use, extended configuration options via the sensorTOOL software and excellent price-performance ratio make the thermoMETER FI the ideal temperature sensor for OEM and series applications.

Characteristics

Temperature measuring range from -40 to +1100 °C
Universal spectral range (8 ... 14 µm) enables measurement on all common objects
Short response time of 20 ms for fast inline processes
Best temperature stability for more precision even with strongly fluctuating ambient temperatures
Preconfigured current or voltage output (switchable via software)
Loadable alarm output with 500 mA / 60 V for controlling external devices
Robust sensor for high temperature applications up to 120°C
Parallel digital and analog operation

Fully integrated with extensive functions

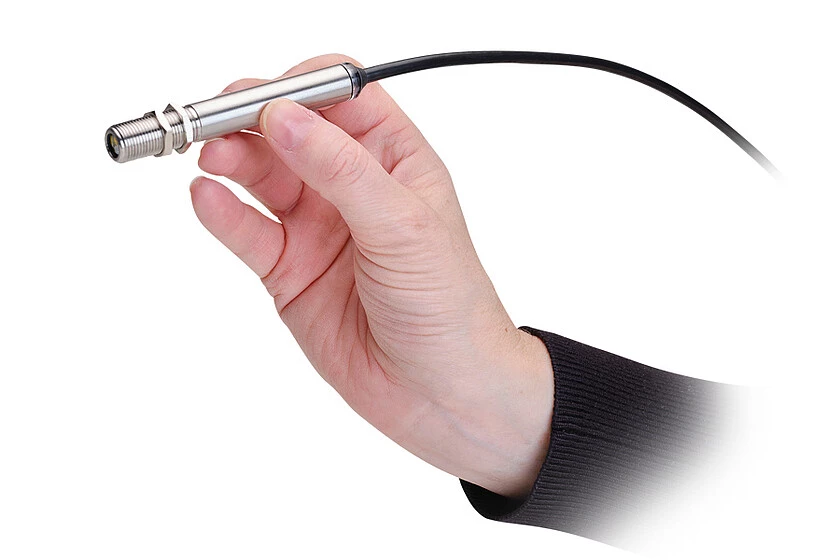

The thermoMETER FI industrial pyrometers combine sensor and controller in a robust stainless steel housing, making them extremely compact. The integrated controller is extremely powerful and offers numerous setting options, which can be made via an optional USB converter and the sensorTOOL.

Ideal for demanding environments

The thermoMETER FI temperature sensors are extremely robust and can be used in environments up to +80 °C (even higher with cooling). Thanks to excellent temperature compensation, the industrial pyrometers measure extremely precisely, even at highly fluctuating ambient temperatures. In addition, high EMC immunity ensures that the measurement signal is not affected and remains stable even in industrial applications.

Quick setup and user-friendly operation

These precise temperature sensors are calibrated at the factory and preconfigured for a temperature range from 0 to +600 °C. Alarms or the system status can be recognized remotely via two integrated LEDs (red & green). An additional aiming aid function facilitates commissioning and helps to optimally align the sensor.

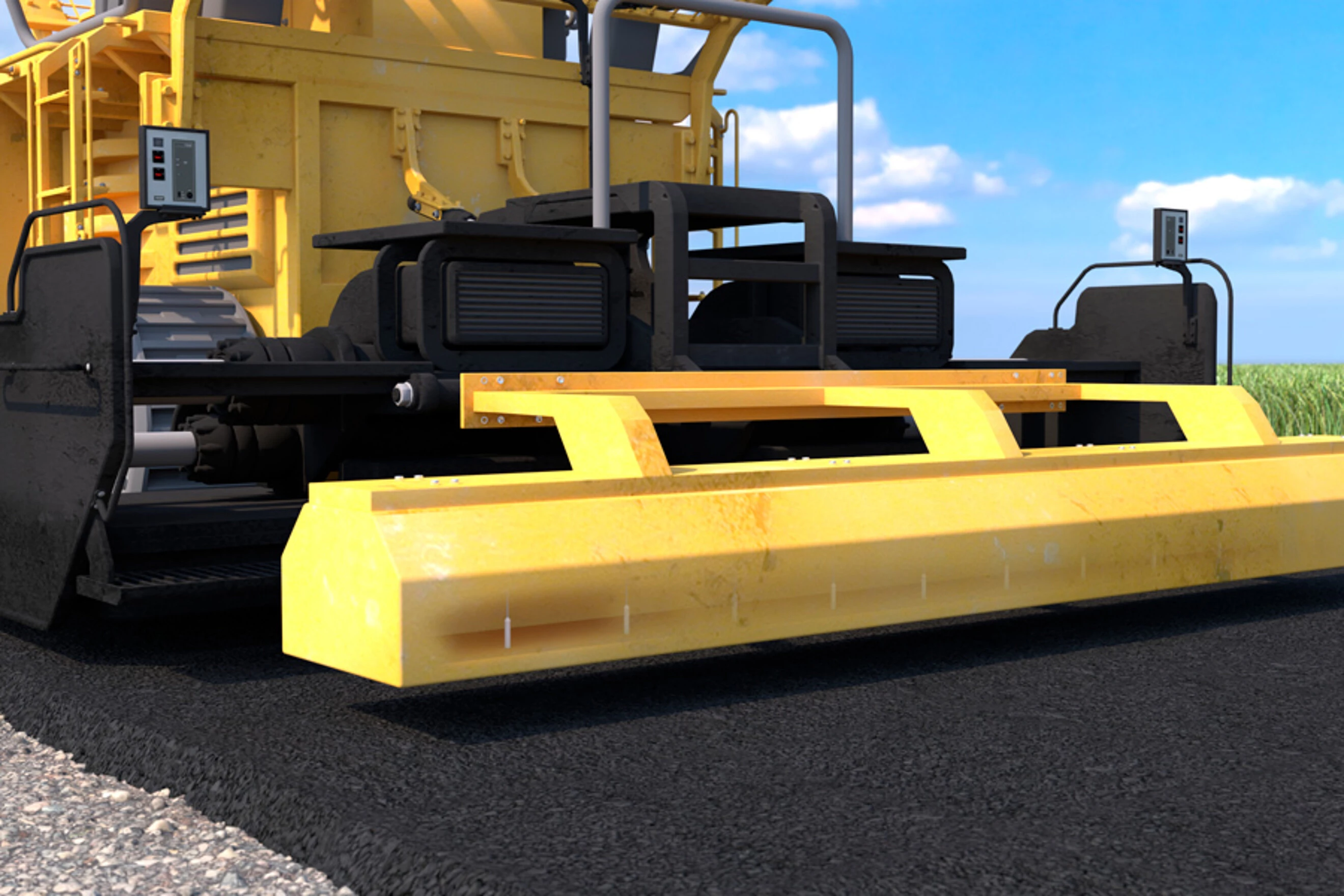

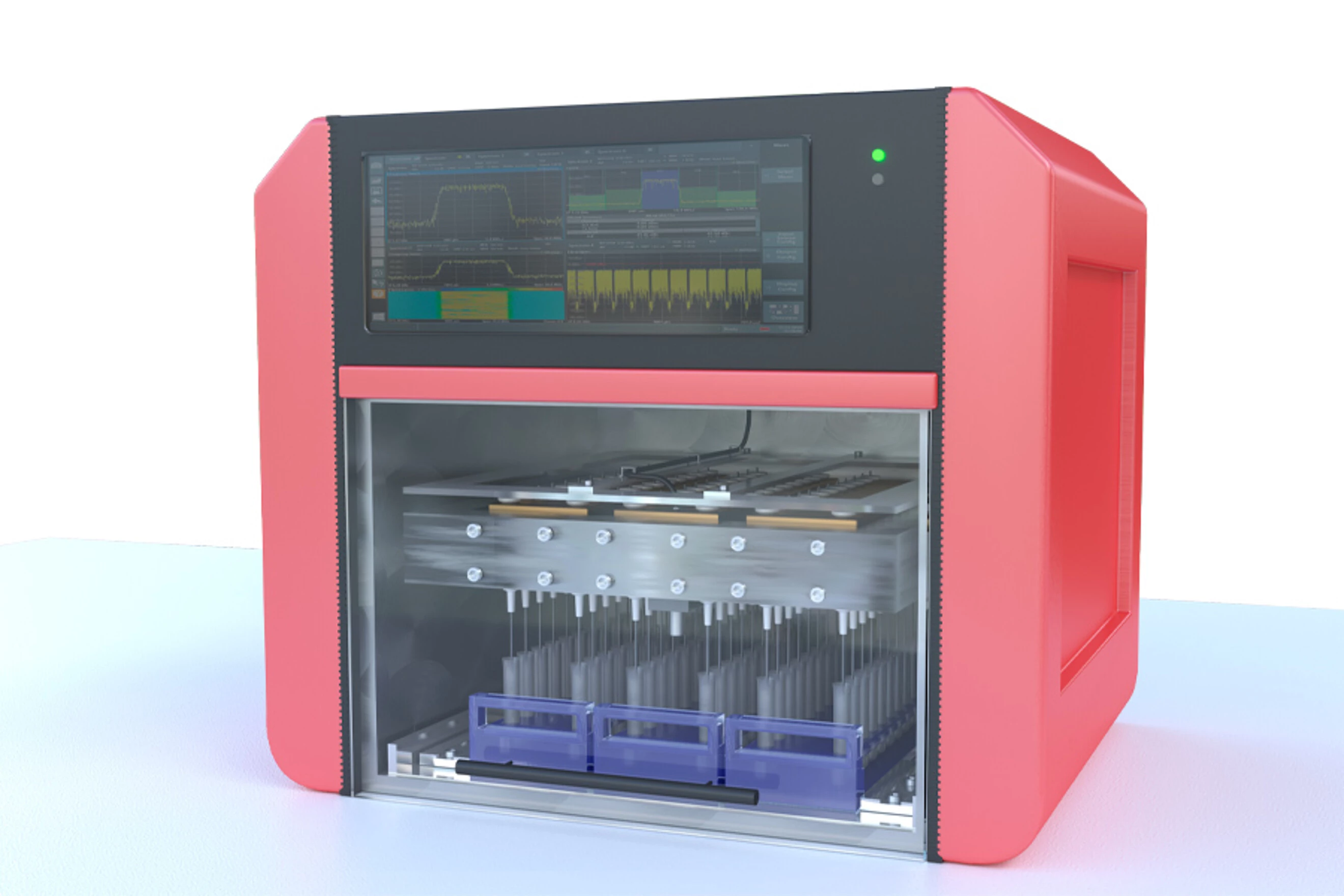

Integrated into asphalt pavers, thermoMETER FI pyrometers measure the asphalt temperature after application		Measuring the temperature of samples in DNA analyzers with thermoMETER FI
