Robust miniature pyrometers for non-contact infrared temperature measurements

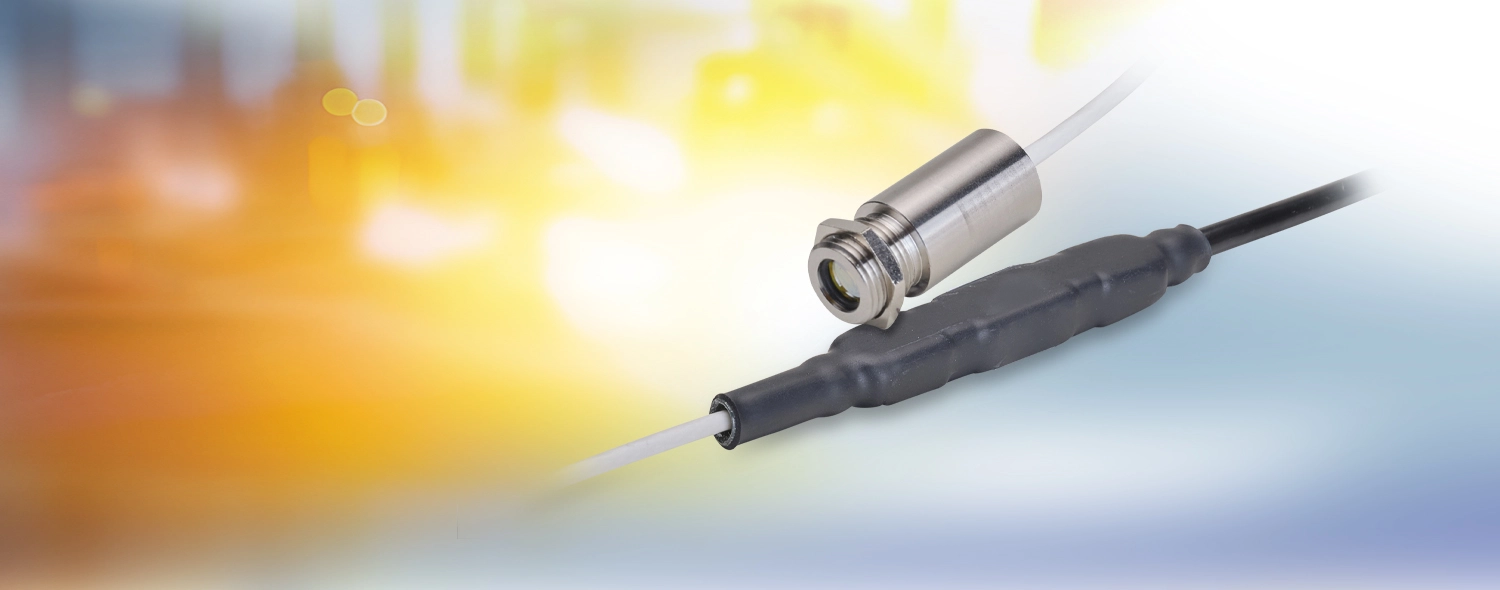

The thermoMETER SE is a precise infrared pyrometer for temperatures from -40 to +1100 °C. It consists of a compact sensor with a miniature controller integrated into the connection cable. The sensor itself is extremely small and can be used in hot environments up to 120 °C. In addition to its miniature design, robust construction and high performance, the thermoMETER SE is characterized by a wide range of interfaces and setting options. It is extremely versatile and is used in machine building and machine design, in production and for quality assurance. Due to its excellent price-performance ratio, it is particularly suitable for series applications and OEMs.

Characteristics

Temperature measuring range from -40 to +1100 °C
Universal spectral range (8 ... 14 µm) enables measurement on all common objects
Short response time of 20 ms for fast inline processes
Best temperature stability for more precision even with strongly fluctuating ambient temperatures
Preconfigured current or voltage output (switchable via software)
Loadable alarm output with 500 mA / 60 V for controlling external devices
Robust sensor for high temperature applications up to 120°C
Parallel digital and analog operation

Lots of power - little effort

The thermoMETER SE industrial pyrometer is a complete and preconfigured measuring channel. The sensor, controller and connection cable are one unit that is calibrated and preconfigured at the factory, and therefore ready for immediate use. If required, the sensor can be parameterized via the sensorTOOL, which provides advanced settings and functions.

Ideal for demanding environments

The thermoMETER SE temperature sensors are extremely robust. As the controller is integrated in the cable, the sensor can be used in environments up to +120 °C (even higher with cooling). Thanks to excellent temperature compensation, the industrial pyrometers measure extremely precisely, even at highly fluctuating ambient temperatures. In addition, high EMC immunity ensures that the measurement signal is not affected and remains stable.

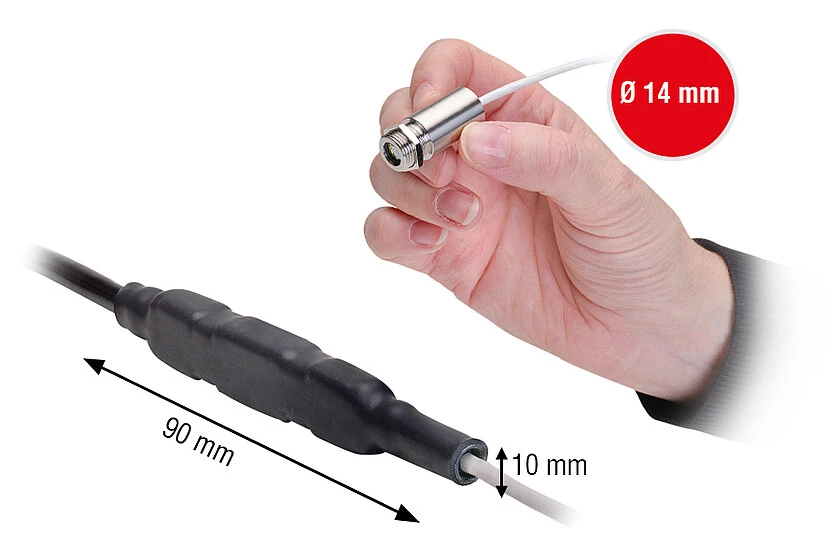

Compact sensor with miniature controller

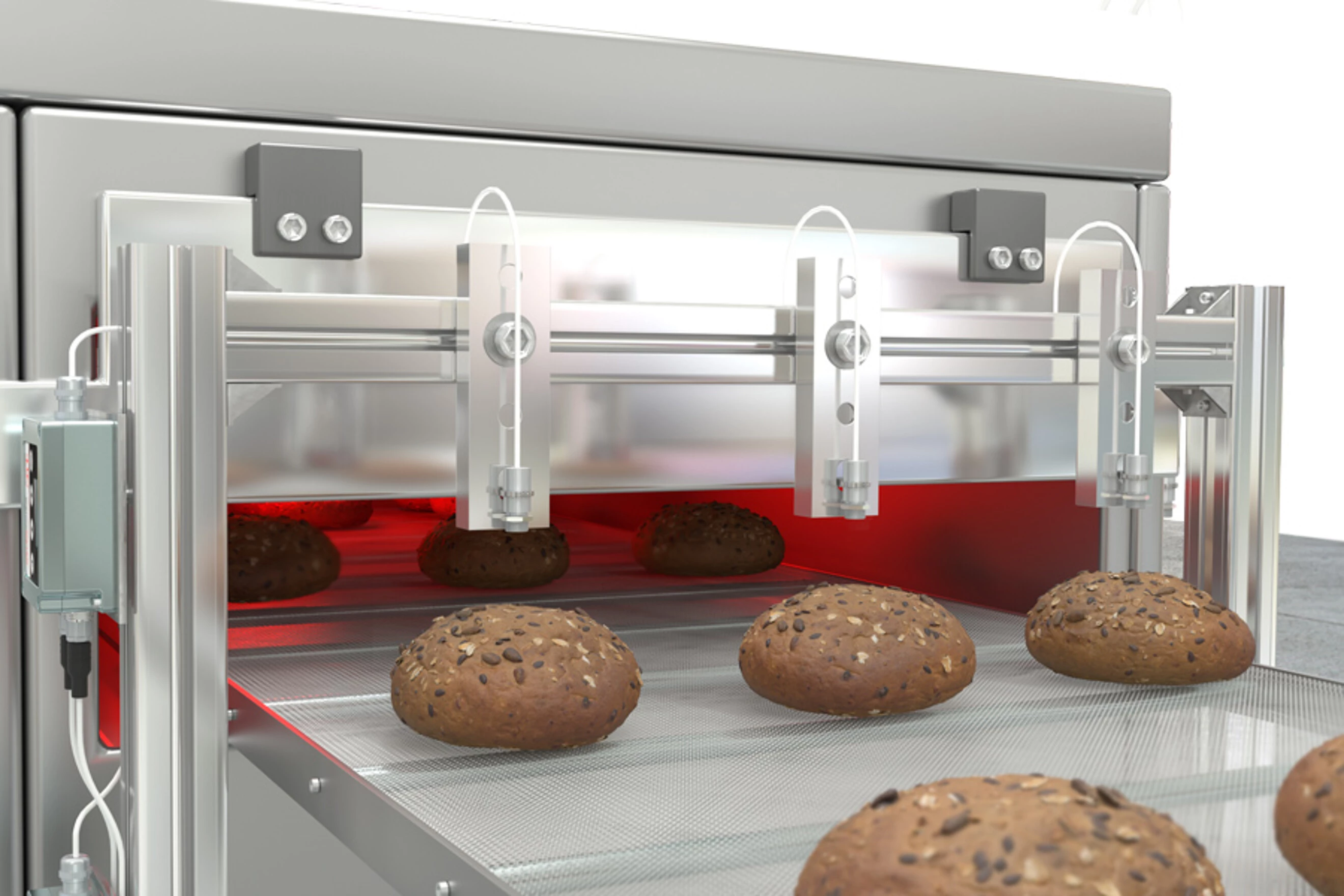

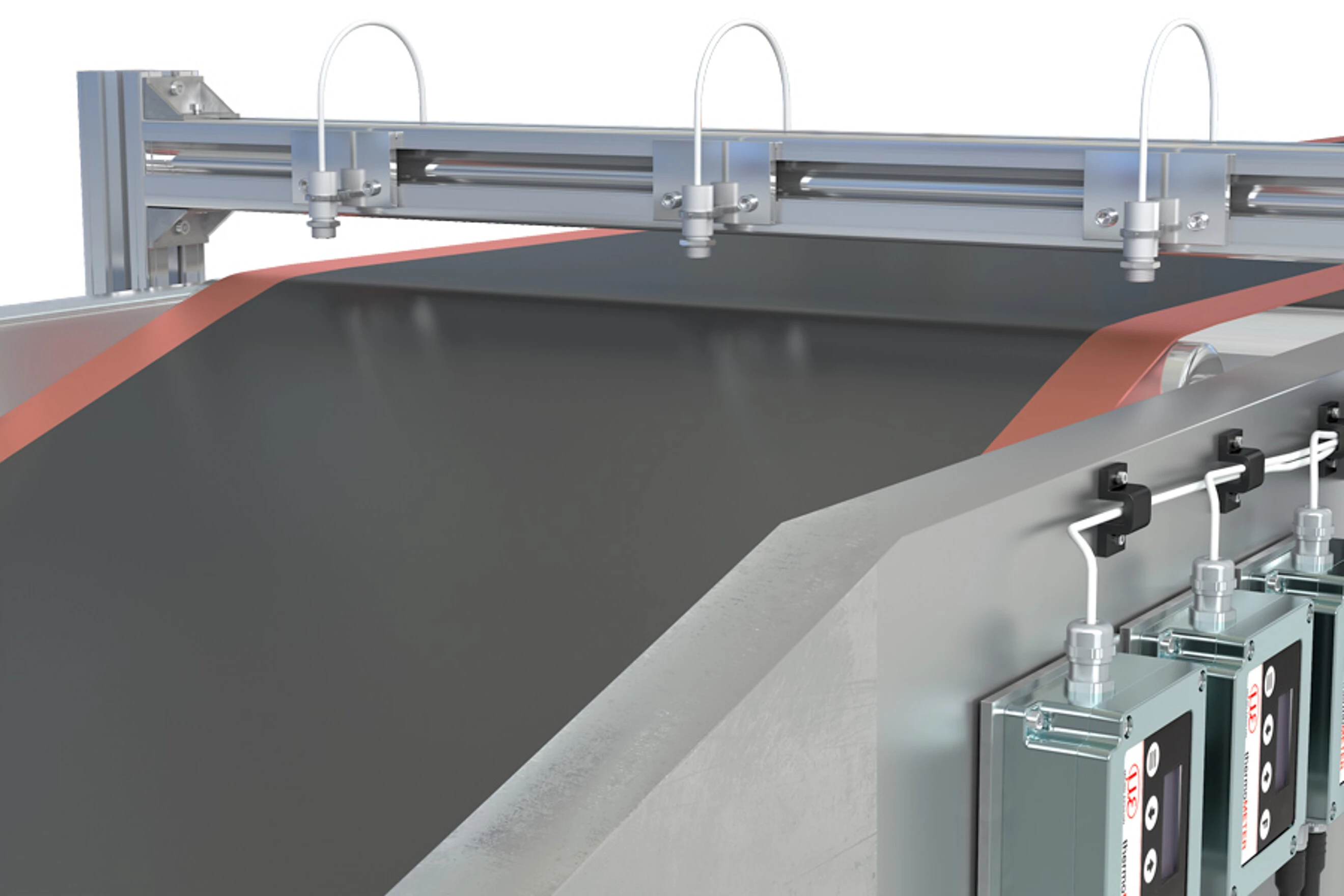

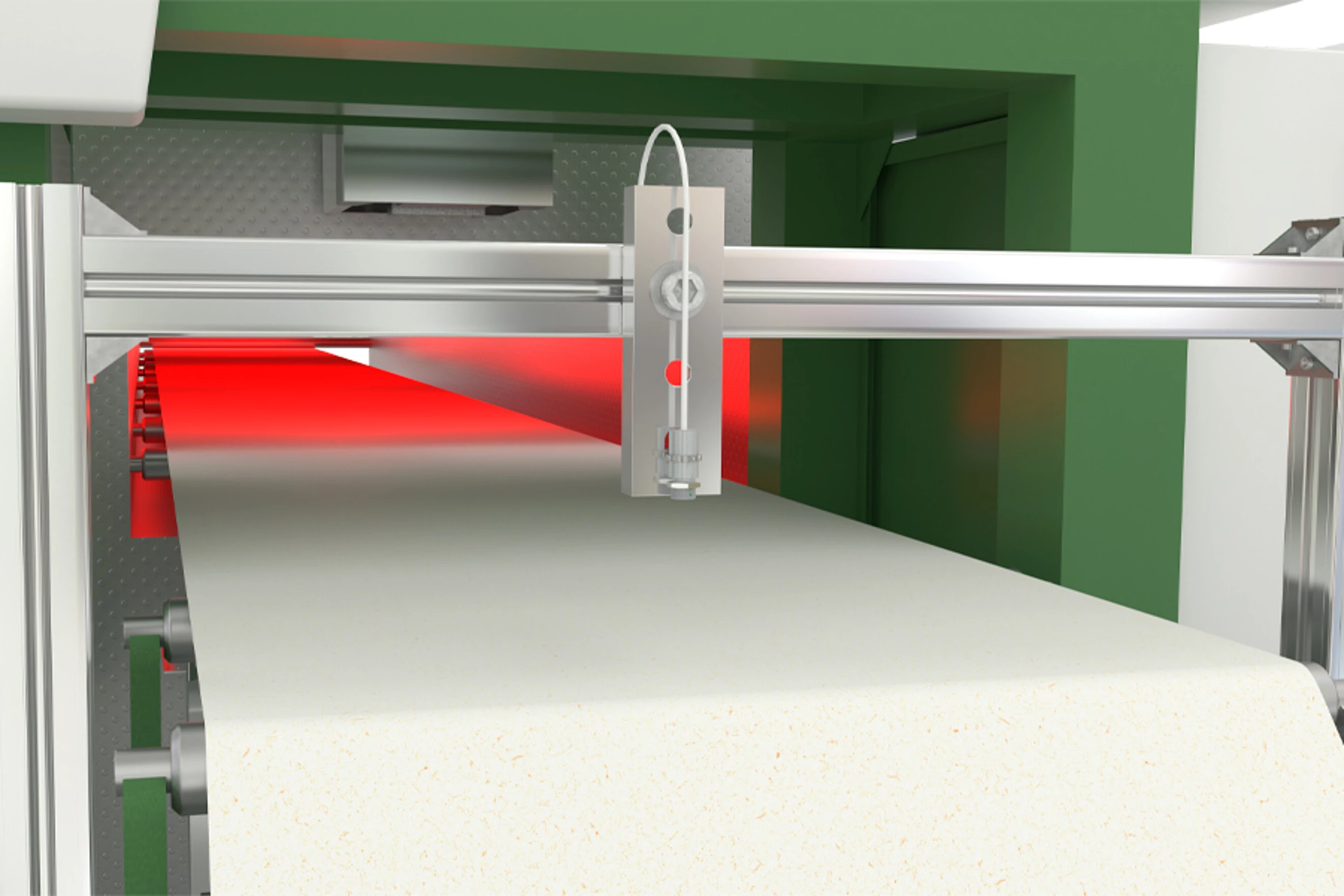

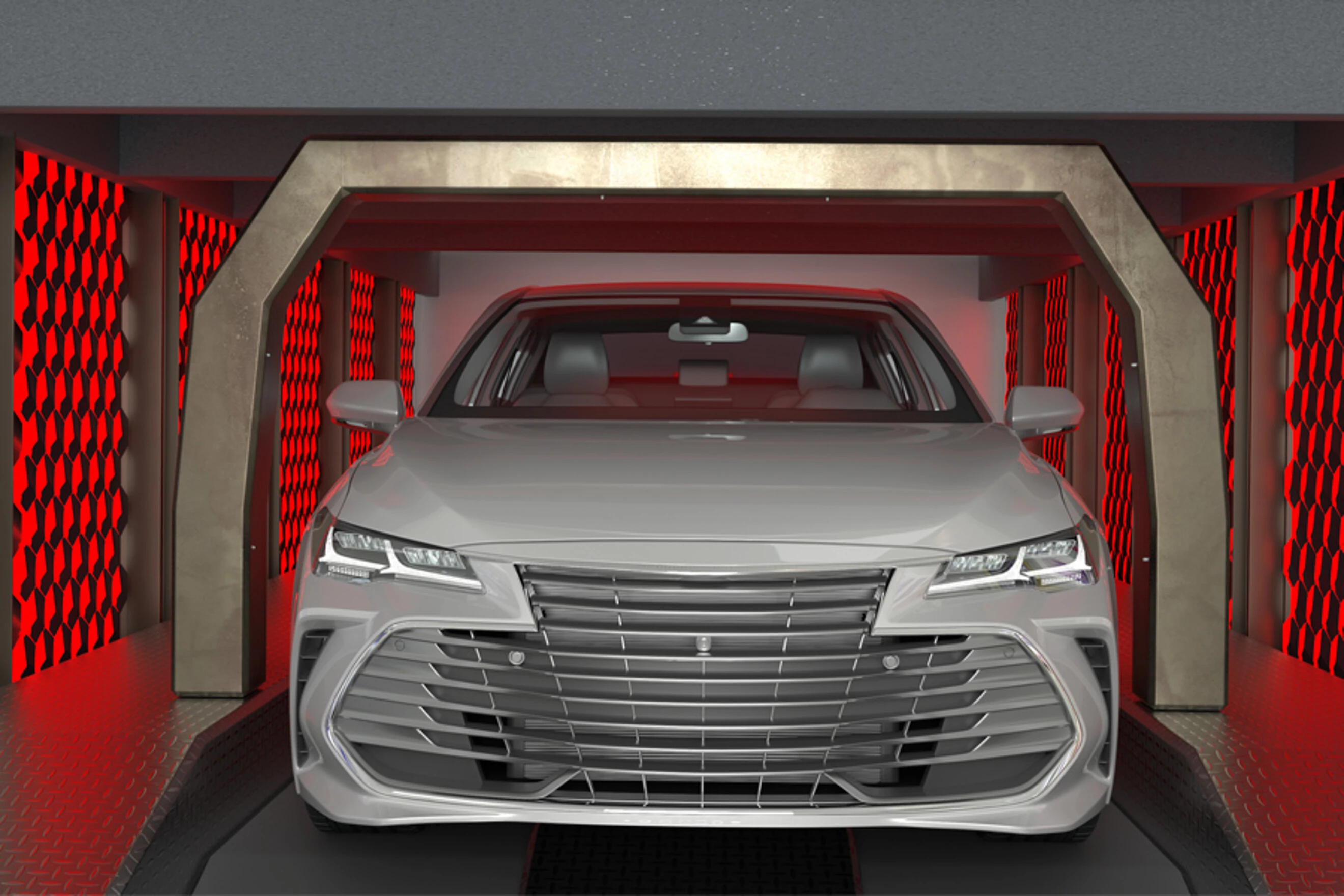

Measuring the temperature of baked goods with thermoMETER SE sensors		Checking the drying process after painting vehicles with thermoMETER SE		Monitoring the drying process in paper production with thermoMETER SE		Temperature measurement in the coating process of battery films with thermoMETER SE
