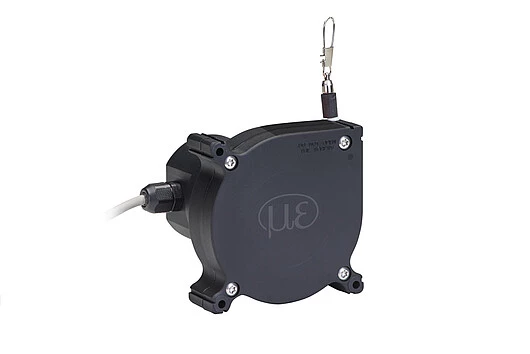

Robust draw-wire displacement sensors – wireSENSOR WPS-MK88-U45R

The MK88 is specially designed for mobile applications in series such as mobile cranes or mobile working platforms. The combination of compact size, robust design, measuring range and price makes the MK88 unique, offering new potentials in design and cost optimization.



 Characteristics

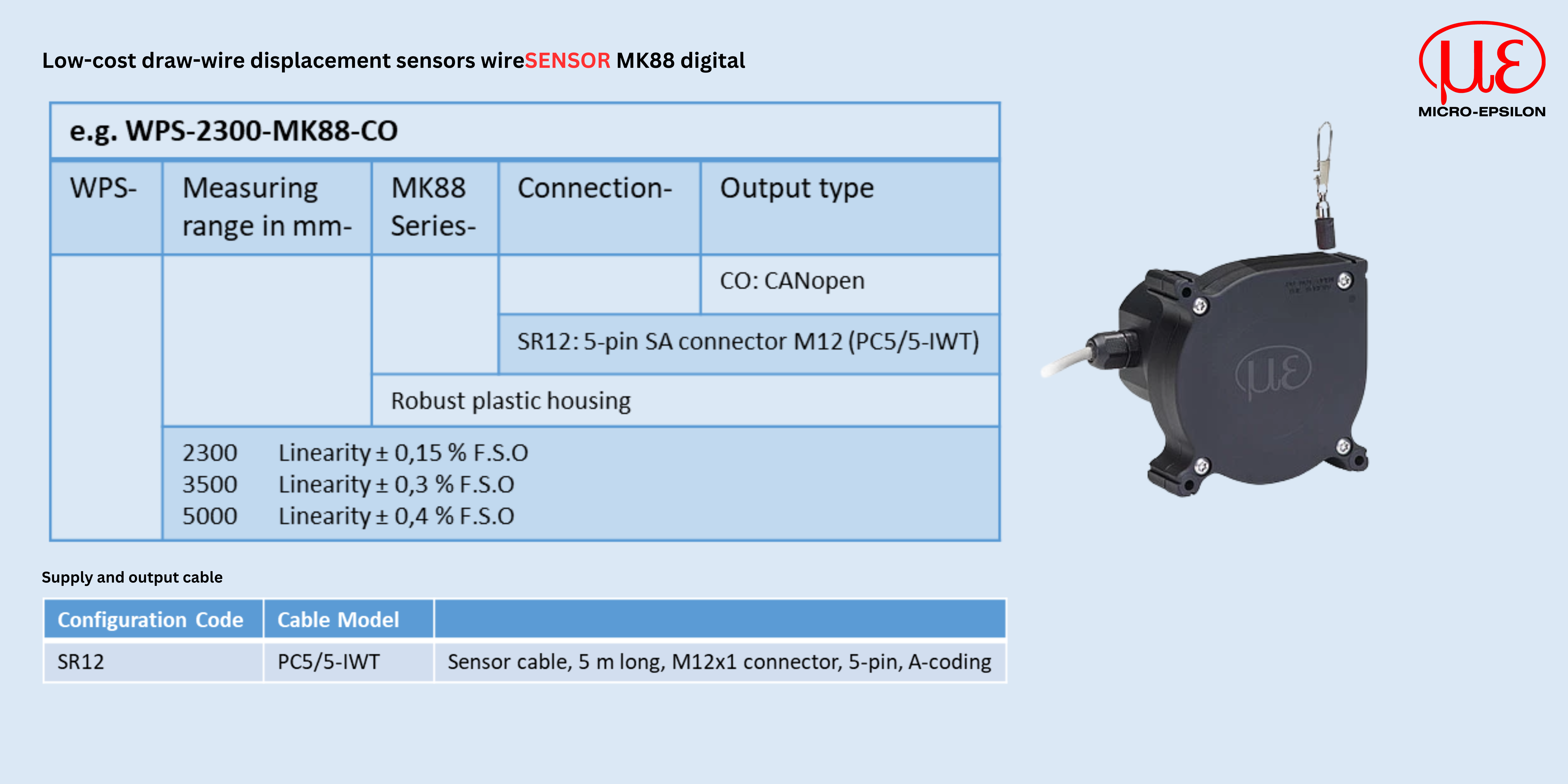

  •  Measuring ranges (mm): 2300 | 3500 | 5000
  •  Temperature range: - 20 ... + 80° C (on request: -40 ... +85 °C)
  •  Protection class: IP65 (on request: IP67)
  •  Output type: CANopen
  •  Linearity up to ± 0.15 % FSO
  •  Smallest design in this sensor class
  •  Customer-specific designs for series applications

Data sheet wireSENSOR MK88
