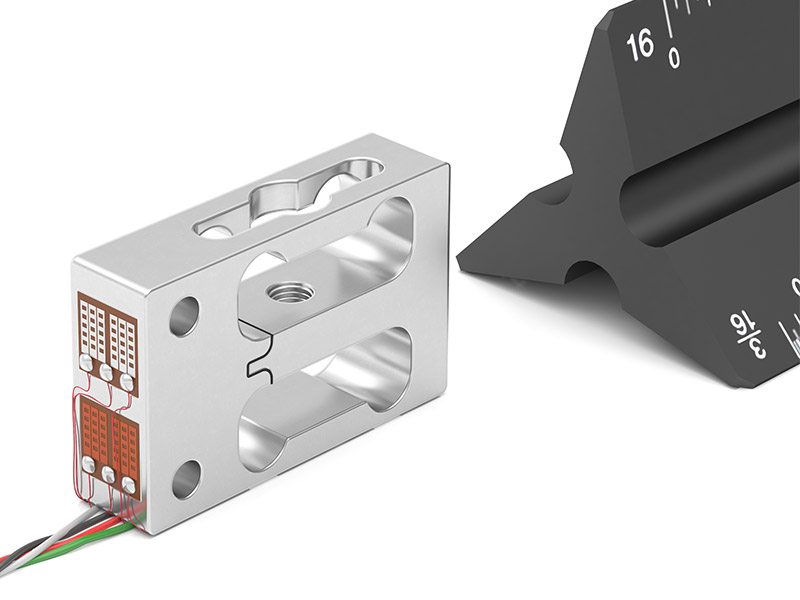

With a length of 1.49in (37.8mm), width of 0.38in (9.5mm) and with a height of 0.93in (24mm), the LSM250 is specifically targeted for OEM applications that require space saving design. Made of light-weight aluminium alloy, the sensor itself weighs only 28 grams.

LSM250 sensor models are built with aerospace grade aluminium alloy AL2024, which is known for its high strength, durability, and corrosion resistance.

The LSM250 is built specifically for OEM applications, as the model eliminates all exterior components like cover or casing and even cable jackets and connector pins in order to reduce the footprint as much as possible. Due to these exposed components, the sensor requires white-glove handling during installation and set-up.

The unique overload stop design protects the sensor from damage during accidental overload in both tension and compression modes. It also decreases the risk of mechanical breakage and yield as the overload stop helps to stop the part from deflecting, which prevents the metal from going into its yield state.

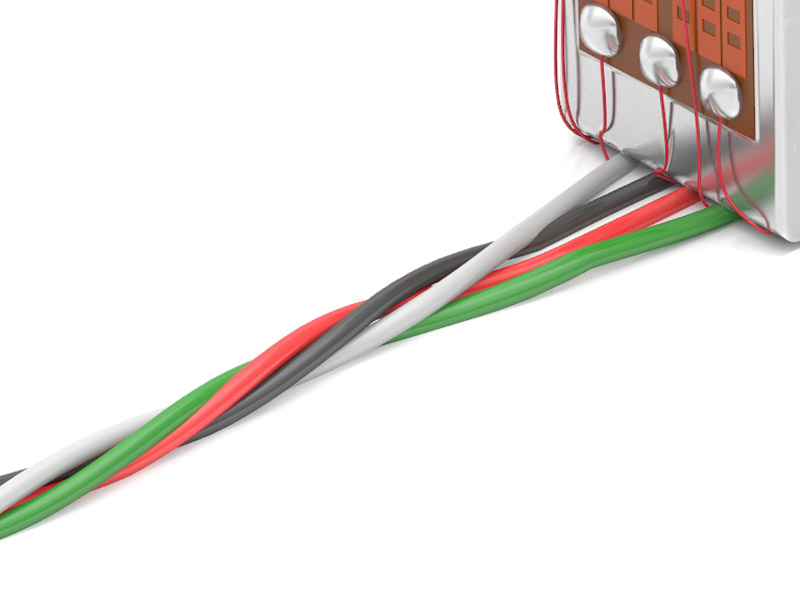

LSM250 is offered with a standard 4-conductor spiral Teflon cable that allows data collection. The load cell can be paired with signal conditioners, amplifiers and indicators for specific OEM applications and interfaced quickly to your existing equipment.

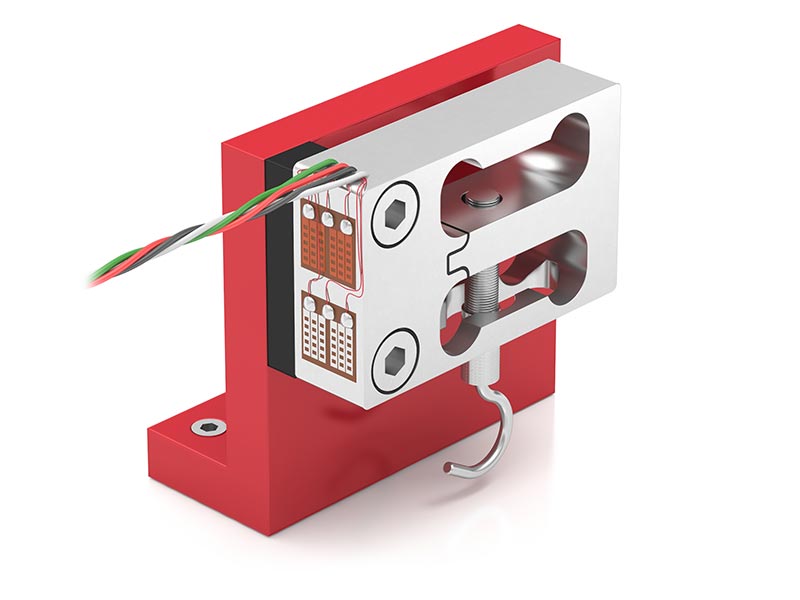

As all aluminum models have the same thread size and the same mounting, two capacities can easily be swapped if the product weighing range increases or decreases. The spiral 6in (15cm) Teflon cable can easily be customized to increase length.

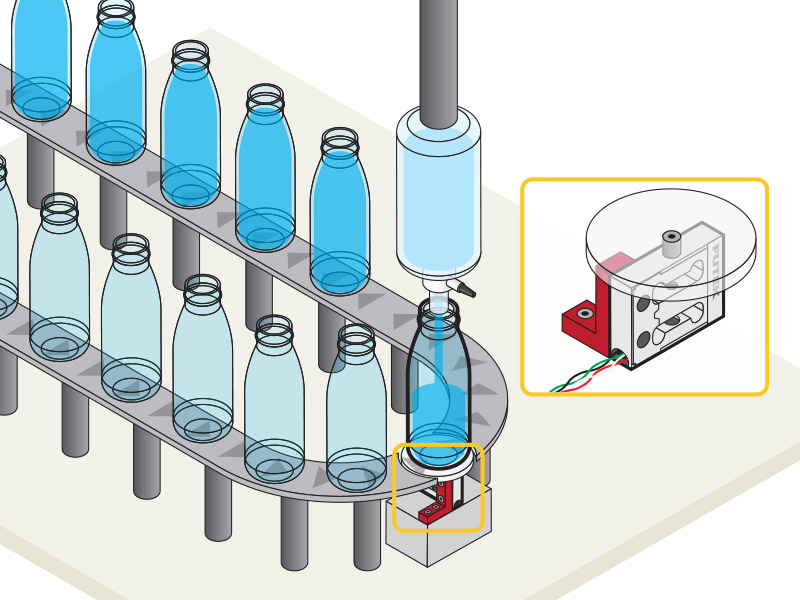

The LSM250 model is aimed squarely at high volume applications that require high accuracy measurements below 450g capacities. Applications cover a very wide range of markets, such as syringe calibration, wire bond testing (in micro-electronics), medical tablet and pill weighing and capsule filling, food processing, batching systems, small scales, check-weighing systems, batching scales, counting scales, and mass flow meters.
