Application 703

Helicopter Cyclic Control Sensors

Application Summary

Flight controls require extreme auditing prior to in-flight use. FUTEK's MAU300 Gear Shift Load Cell provides quality assurance engineers with the appropriate tools to monitor the force applied to helicopter cyclic controls (joysticks).



Products in Use

FUTEK Stick Shift / Gear Shift Knob Load Cell (MAU300) paired with Instrumentation (IAA Series Analog Amplifier, IPM650 Panel Mount, IHH500 Digital Display, and USB Solution).

Multi-Axis Sensor - Helicopter Cyclic Control Sensors
How it Works

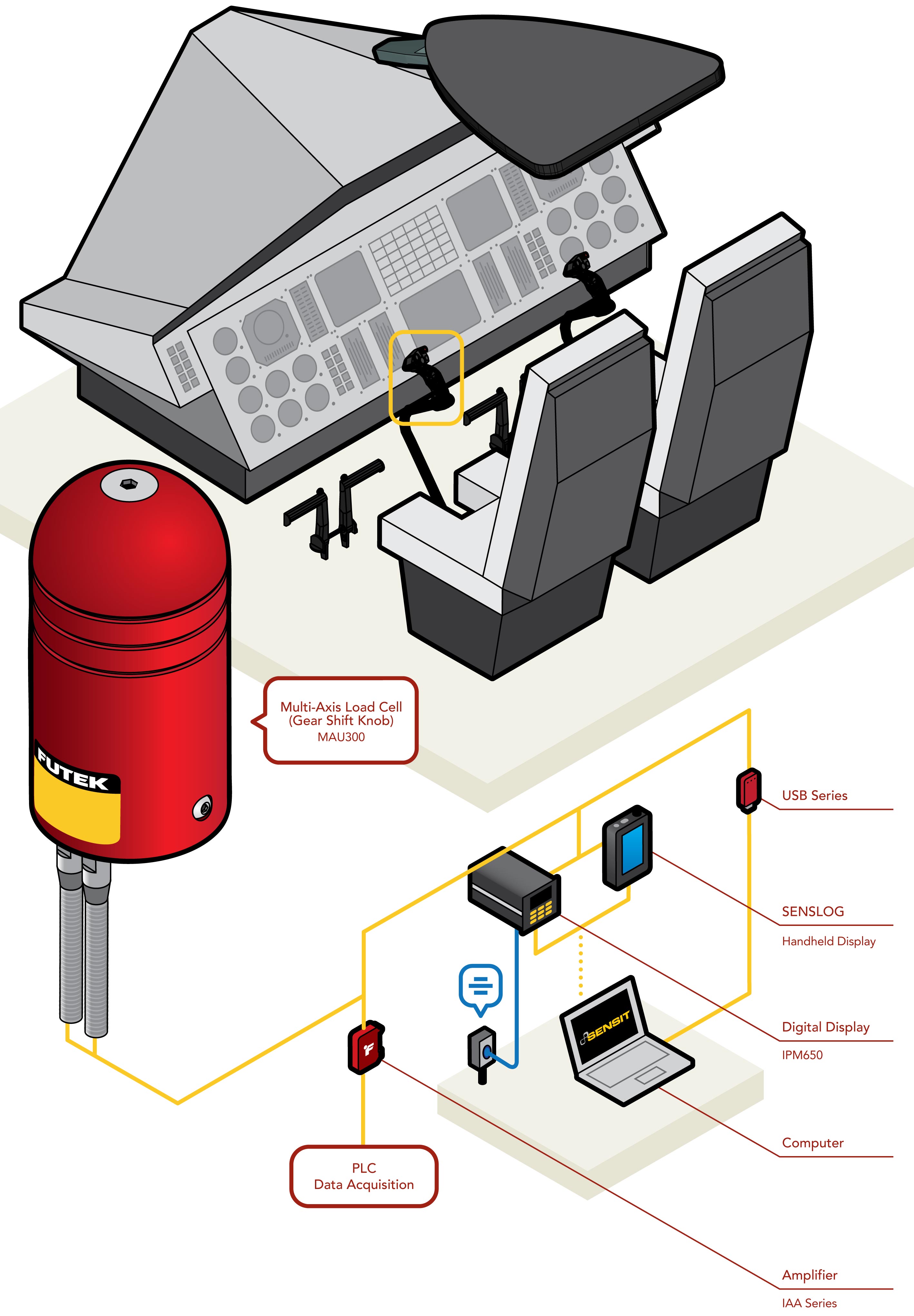

  1. Helicopter cyclic controls (joysticks) are responsible for lateral and longitudinal movements of the aircraft.
  2. To ensure that these mechanism are operating properly, quality assurance engineers can install FUTEK's MAU300 Multi-Axis Gear Shift Load Cell into the shaft of each joystick.
  3. The MAU300 performs measurements in both the Fx and Fy directions.
  4. These force measurements can be read upon a digital display, such as FUTEK's IPM650 Panel Mount Display or IHH500 Intelligent Digital Hand Held Display, or streamed to a PC utilizing FUTEK's USB Solutions.
  5. Once streamed to a PC, that data can then be monitored by FUTEK's SENSIT™ Test and Measurement Software. SENSIT™ can monitor up to 16 channels of measurement readings, as well as live graph and data log.
Multi-Axis Sensor - MAU300 - Stick Shift / Gear Shift Knob Load Cell
MAU300
Stick Shift / Gear Shift Knob Load Cell
Multi-Axis Sensor - IAA Series - Analog Amplifier
IAA SERIES
Analog Amplifier
Multi-Axis Sensor - USB SOLUTIONS - High Resolution USB Output Module
USB SOLUTIONS
High Resolution USB Output Module
Multi-Axis Sensor - IHH500 - Intelligent Digital Hand Held Display
IHH500
Intelligent Digital Hand Held Display
Multi-Axis Sensor - IPM650 - Panel Mount Display
IPM650
Panel Mount Display
