• Application 107

    Hydraulic/Pneumatic Press Force

    Application Summary

    Press (Hydraulic or Pneumatic) verification testing is a necessary requirement within the automation process. By implementing load cells with USB output, the operator can verify the uniform loading of a large platform. Each load cell serves as a monitoring point within the system.



    Products in Use

    LCA Series Miniature Column Load Cell paired with USB Solutions.

    Load Cell - Hydraulic/Pneumatic Press Force
    How it Works

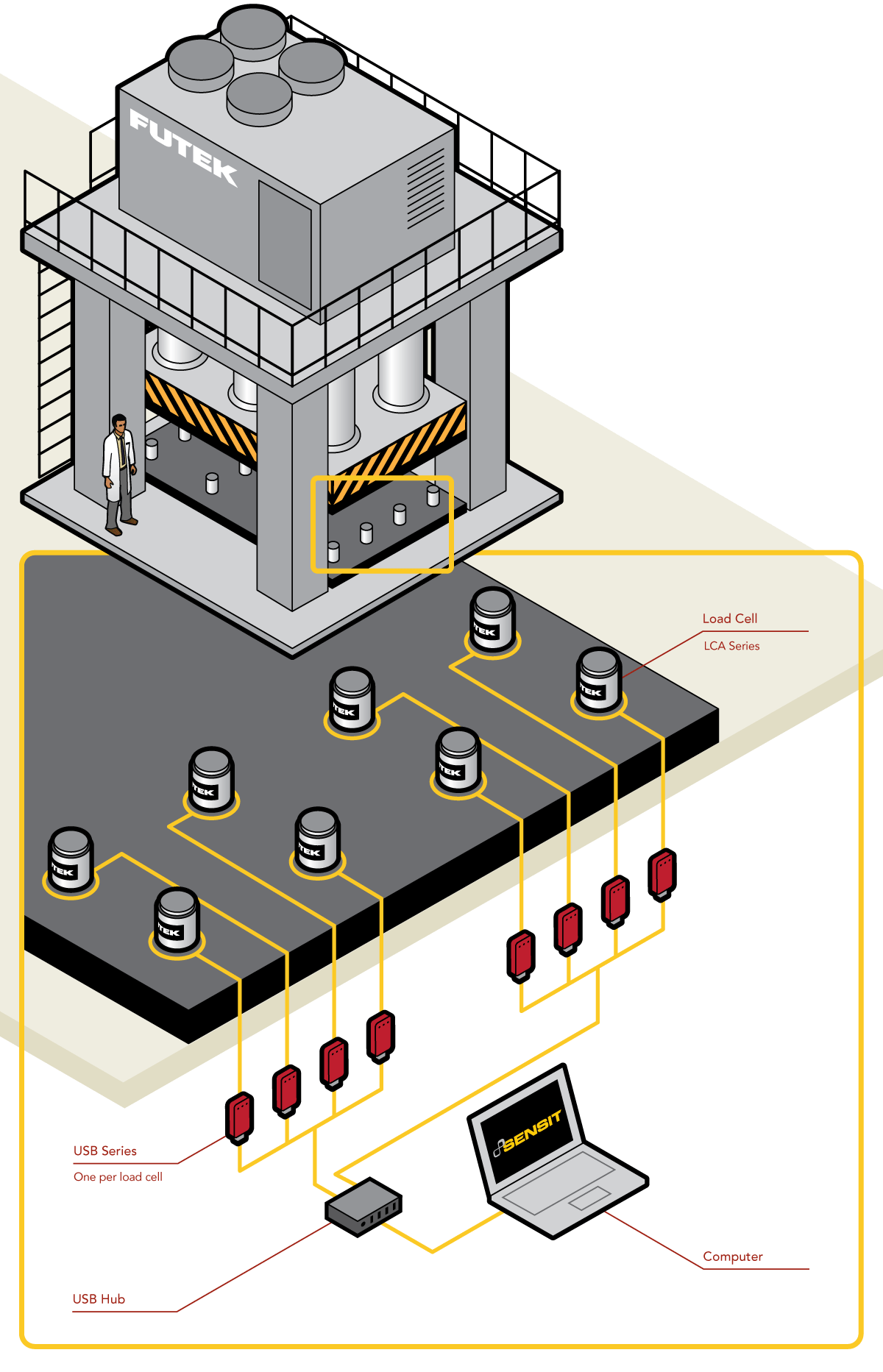

    1. In this application, engineers have installed several LCA Series Miniature Column Load Cells at the base of this hydraulic press, implementing enough load cells to quantify the full force capacity of the press.
    2. These load cells have been paired with FUTEK USB modules allowing a live stream of measurements onto the engineer or operator's PC.
    3. As compressive forces are applied to the LCA Series Load Cells, FUTEK’s USB Solutions in conjunction with FUTEK’s SENSIT™ Test and Measurement Software can verify if the hydraulic press is accurately performing.

    Load Cell - LCA Series - Miniature Column Load Cell
    LCA SERIES
    Miniature Column Load Cell
    Load Cell - USB Solutions - High Resolution USB Output Module
    USB SOLUTIONS
    High Resolution USB Output Module
    Load Cell - SOFTWARE - SENSITâ„¢ Test and Measurement
    SOFTWARE
    SENSIT™ Test and Measurement
