    Mentor MP - High performance DC drive solution platformcULus Listed

    25 A – 7,400 A (5 hp – 6,500 hp)

    460 V | 575 V | 690 V

    Mentor MP brings DC drive technology up to date, enabling existing and new DC motors to provide economic and productive service. DC drive technology remains cost effective, efficient and is relatively simple to implement. For new applications, DC provides many advantages, especially for regenerative and high-power applications.


    Features Specifications Options Software Downloads
    Models available for two or four quadrant (regenerative) operation

    25 A to 7400 A, 24 V - 480 V | 500 V - 575 V | 500 V - 690 V

    Optional high-brightness LED or multi-language LCD keypad, simple configuration using plain text

    Modular parallel connection for higher power motor operation

    12/24 pulse operation to minimize harmonics

    IP20 (NEMA 1) protection for size 1, IP10 (open chassis) for size 2A and 2B, and IP00 (open chassis) for size 2C and 2D         for easy, low cost installation

    Integrated drive and motor protection for:

        Over current

        Over temperature

        Phase loss

        SCR/Thyristor junction temperature

        Feedback loss

        Field loss

        Armature open circuit



    Internal field controller with intelligent field weakening means that for 90% of applications no additional external controller     is required

        Frame size 1 to 8 A

        Frame size 2 to 20 A

        Flux control for enhanced open loop performance



    Optional FXMP25 external field controller for current fields up to 25 A

        Digital link for field control from Mentor MP or Mentor II

        Standalone digital control mode for simple application

        Flux control for enhanced open loop performance

        Intelligent field weakening

        Field forcing – for high dynamic machine reversal

        Field reversal – low dynamic machine reversing using two quadrant main stack



    Mentor MP size 1 can be used for fields greater than 25 A

    Serial port for Modbus RTU and PC communications

    3 Universal option module slots, allowing Mentor MP to benefit from the solutions developed for Control Techniques market leading AC drive technology.

    Each option slot allows:

        High performance PLC and motion control

        Ethernet and Fieldbus communications

        Connectivity to additional feedback devices

        Additional I/O



    Galvanically isolated control

    Smartcard for drive parameter back-up and copying, allowing rapid installation and maintenance

    Integrated PLC as standard

    Standard software features for easy integration

        PID controller

        Motorized potentiometer

        Digital lock (Slave operation from master encoder)



    Open loop control using estimated speed advanced processing based on armature voltage and field flux feedback

    Closed loop control using

        Tacho-generator feedback for connection to traditional DC motor

        Incremental encoder feedback for higher accuracy and position control

        Optional SinCos, SSI, Hiperface and EnDAT connectivity for high performance applications

    High performance control strategy

        32 bit microprocessor

        35μs current sampling time

        Speed controller and ramps update 250 μs

        Autotune features for armature, field current loops and speed loop



    Current ratings

    The power ratings for the 480V, 575V and 690V configurations are shown below.
    The continuous current ratings given are for a maximum ambient temperature of 40°C (104°F) and an altitude of 1000m (3,300ft). For operation at higher temperatures and altitudes de-rating is required. Overload of 150% for 30s is available with ambient temperature of 40°C (104°F) up to a maximum of 10 repetitions per hour.



    230 V ratings

    MODEL

    AC INPUT CURRENT

    DC OUTPUT CURRENT

    TYPICAL MOTOR POWER

    CONTINUOUS

    CONTINUOUS

    150% OVERLOAD




    240Vdc

    A

    A

    A



    hp

    MP25A4(R)

    22

    25

    37.5



    5

    MP45A4(R)

    40

    45

    67.5



    10

    MP75A4(R)

    67

    75

    112.5



    20

    MP105A4(R)

    94

    105

    157.5



    30

    MP155A4(R)

    139

    155

    232.5



    40

    MP210A4(R)

    188

    210

    315



    60

    MP350A4(R)

    313

    350

    525



    100

    MP420A4(R)

    376

    420

    630



    125

    MP550A4(R)

    492

    550

    825



    150

    MP700A4(R)

    626

    700

    1050



    200

    MP825A4(R)

    738

    825

    1237.5



    225

    MP900A4(R)

    805

    900

    1350



    250

    MP1200A4(R)

    1073

    1200

    1800



    350

    MP1850A4(R)

    1655

    1850

    2775



    550



    480 V ratings

    MODEL

    AC INPUT CURRENT

    DC OUTPUT CURRENT

    TYPICAL MOTOR POWER

    CONTINUOUS

    CONTINUOUS

    150% OVERLOAD

     @ 400 Vdc

    500 Vdc

    A

    A

    A

    kW

    hp

    MP25A4(R)

    22

    25

    37.5

    9

    15

    MP45A4(R)

    40

    45

    67.5

    15

    27

    MP75A4(R)

    67

    75

    112.5

    27

    45

    MP105A4(R)

    94

    105

    157.5

    37.5

    60

    MP155A4(R)

    139

    155

    232.5

    56

    90

    MP210A4(R)

    188

    210

    315

    75

    125

    MP350A4(R)

    313

    350

    525

    125

    200

    MP420A4(R)

    376

    420

    630

    150

    250

    MP550A4(R)

    492

    550

    825

    200

    300

    MP700A4(R)

    626

    700

    1050

    250

    400

    MP825A4(R)

    738

    825

    1237.5

    300

    500

    MP900A4(R)

    805

    900

    1350

    340

    550

    MP1200A4(R)

    1073

    1200

    1800

    450

    750

    MP1850A4(R)

    1655

    1850

    2775

    700

    1150





    575 V ratings



    MODEL

    AC INPUT
    CURRENT

    DC OUTPUT CURRENT

    TYPICAL MOTOR POWER



    CONTINUOUS

    CONTINUOUS

    150% OVERLOAD


    @ 630 Vdc


    @ 600
    Vdc

    A

    A

    A

    kW

    hp

    MP25A5(R)

    22

    25

    37.5

    14

    15

    MP45A5(R)

    40

    45

    67.5

    25

    30

    MP75A5(R)

    67

    75

    112.5

    42

    50

    MP105A5(R)

    94

    105

    157.5

    58

    75

    MP155A5(R)

    139

    155

    232.5

    88

    100

    MP210A5(R)

    188

    210

    315

    120

    150

    MP350A5(R)

    313

    350

    525

    195

    250

    MP470A5(R)

    420

    470*

    705

    265

    350

    MP700A5(R)

    626

    700

    1050

    395

    500

    MP825A5(R)

    738

    825*

    1237.5

    465

    600

    MP1200A5(R)

    1073

    1200

    1800

    680

    900

    MP1850A5(R)

    1655

    1850

    2775

    1045

    1400

    *For this rating at 575V, 150% overload time is 20s at 40°C and 30s at 35°C



      690 V ratings

    MODEL

    AC INPUT CURRENT

    DC OUTPUT CURRENT

    TYPICAL MOTOR POWER

    CONTINUOUS

    CONTINUOUS

    150%OVERLOAD



    @ 760 Vdc



    @ 700 Vdc

    A

    A

    A

    kW

    hp

    MP350A6(R)

    313

    350

    525

    240

    300

    MP470A6(R)

    420

    470*

    705

    320

    400

    MP700A6(R)

    626

    700

    1050

    480

    600

    MP825A6(R)

    738

    825*

    1237.5

    650

    700

    MP1200A6(R)

    1073

    1200

    1800

    850

    1000

    MP1850A6(R)

    1655

    1850

    2775

    1300

    1600











    * For this rating at 690V, 150% overload time is 20s at 40°C  and 30s at 35°C .



      Inputs and Outputs

    FUNCTION

    QTY

    I/O DEFAULT FUNCTION

    RATING

    Analog input 1

    1


    Speed ref 1

    ± 10V

    Analog input 2



    1

    Speed ref 2

    ± 10V(default), 0-20mA or 4-20mA

    Analog input 3

    1

    Motor thermistor

    ± 10V, 0-20mA, 4-20mA or Motor thermistor input (default)

    Analog output

    2

    Speed feedback output

    Current feedback output

    ± 10V(default), 0-20mA or 4-20mA

    Digital input

    3

    Run reverse input

    Local/Remote select

    Jog forward input

    +24V

    Digital input / output

    3

    At speed output

    Reset input

    Run forward input

    +24V

    Relay

    2


    Drive OK indicator

    Normally closed

    Drive enable

    1


    Drive enable

    +24V

    +24V External input

    1


    External 24V supply

    +24V





    Conformance

    • Humidity 95% maximum (non condensing) at 40°C (104°F)
    • Ambient temperature -15°C to +40°C (5°F to +104°F), 55°C (131°F) with derating
    • Altitude: 0 to 3000 m (9,900 ft), derate 1% per 100 m between 1000 m (3,300 ft) and 3000 m (9,900 ft)
    • Vibration: Tested in accordance with IEC 60068-2-64
    • Mechanical shock tested in accordance with IEC 60068-2-29
    • Storage temperature -40°C to +70°C (-40°F to +158°F)
    • Electromagnetic immunity complies with EN 61800-3 and EN 61000-6-2
    • Notch Immunity to IEC60146-1-1 class A
    • IEC 61800-5-1 Electrical safety
    • IEC 61131-2 I/O
    • EN 60529 Ingress protection
    • UL508C
    • EN 61000-6-4 EMC - with optional EMC filters
    • RoHS compliant





    MODEL

    FRAME

    ARMATURE CURRENT

    (A)*

    FIELD

    CURRENT (A)

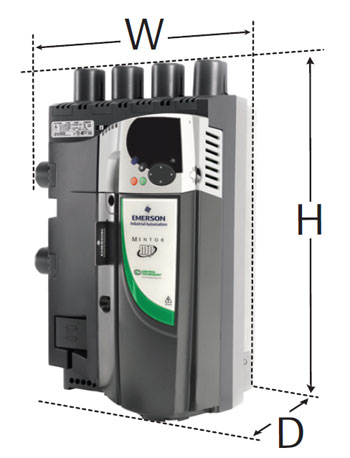

    OVERALL DIMENSION

    QUADRANTS OF
    OPERATION

    480V

    EN / IEC

    cULus



    575V

    EN / IEC

    cULus to 600V

    690V

    EN / IEC

    Width
    (W)

    Height
    (H)

    Depth
    (D)

    MP25A4(R)

    MP25A5(R)





    1A



    25*

    8

    293mm (11.54in)

    444mm (17.48in)



    222mm (8.74in)





    2 and 4



    MP45A4(R)

    MP45A5(R)



    45*

    MP75A4(R)

    MP75A5(R)



    75*

    MP105A4(R)

    MP105A5(R)



    1B

    105*

    293mm (11.54in)

    444mm (17.48in)



    251mm (9.88in)





    2 and 4



    MP155A4(R)

    MP155A5(R)



    155*

    MP210A4(R)

    MP210A5(R)



    210*

    MP350A4(R)

    MP350A5(R)

    MP350A6(R)

    2A



    350*

    20

    495mm (19.49in)

    640mm (25.20in)



    301mm (11.85in)





    2 and 4



    MP420A4(R)





    420*



    MP470A5(R)

    MP470A6(R)

    470**

    MP550A4(R)





    550*

    MP700A4(R)

    MP700A5(R)

    MP700A6(R)



    2B



    700*

    495mm (19.49in)

    640mm (25.20in)



    301mm (11.85in)





    2 and 4



    MP825A4(R)

    MP825A5(R)

    MP825A6(R)

    825**

    MP900A4(R)





    900*

    MP1200A4

    MP1200A5

    MP1200A6

    2C

    1200*

    555mm (21.85in)

    1050mm

    (41.34in)
    ***

    611mm (24.06in)

    2



    MP1850A4

    MP1850A5

    MP1850A6

    1850*

    MP1200A4R

    MP1200A5R

    MP1200A6R

    2D

    1200*

    555mm (21.85in)

    1510mm (59.45in)

    ***

    611mm (24.06in)

    4

    MP1850A4R

    MP1850A5R

    MP1850A6R

    1850*



    *Current ratings are at 40°C with 150% overload for 30s. **For this rating at 575 V and 690 V, 150% overload time is 20s at 40°C and 30s at 35°C.
    ***Height including optional fit exhaust duct cover is 1252 mm (49.29 in) for size 2C and 1712 mm (67.40 in) for size 2D.

    7400A is achieved by parallel connection of Mentor MP drives



    Further information

    Click here to download the Mentor MP - Quantum MP brochure
