Functions

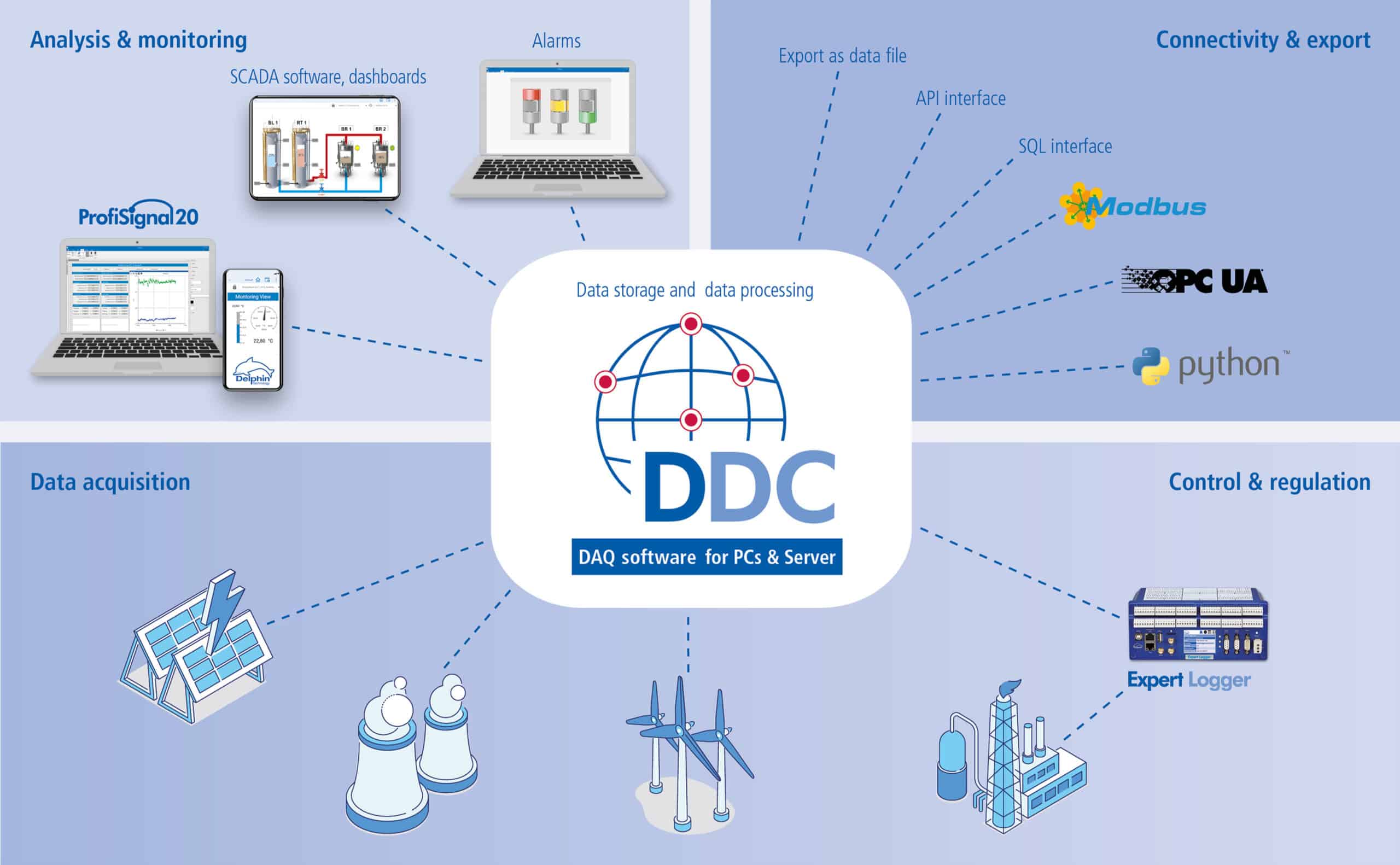

Centralized measurement data management to network measurement data from plants, machines and test stands.

Cross-process data handling

The Delphin Data Center is the heart of the measurement data management system. It merges, synchronises and intelligently pre-processes the data, and uses data compression to optimise storage and performance. Software channels provide extensive functions for calculating and analysing measurement data. The Delphin Data Center also offers user and alarm management across systems. Automated measurement data export is also possible, e.g. into ASCII or CSV formats.

Software channels and calculations

• Calculation of any number of channels with each other using calculation channels
• Limit value channels monitor a source for limit values with the ability to generate alarms
• Mean value channels calculate a channel‘s mean value
• Statistics channels calculate statistics for a channel: minimum, maximum, variance, standard deviation, number of measured values, true RMS value, geometric mean value, harmonic mean value
• Linearisation of non-linear signals
• Counter for channel edges
• Pulse generator for cyclic pulses
• Sequencer for controlling measurement sequences and processes
• Integration of function libraries and tables (e.g. substance databases for refrigerants)

User management

• Password management
• User-rights management
• Client management

Alarm management

• Creation of alarm conditions and rules
• Detailed alarm list with options for confirmation
• Notification by email and text messaging in alarm events
• Audittrail for FDA compliant applications

Data security

• Automated access to Delphin measuring and testing devices by an integrated scheduler
• Continuous data acquisition and data consistency
• Data integrity ensured at all times thanks to SSL-encrypted transmission
• Secure separation of measurement data network and office network
