ProfiMessage D - modularly expandable and perfect for complex measurement tasks


The ProfiMessage D impresses with its consistent modularity: each master or slave device can be equipped with up to two I/O modules, with a total of nine different modules to choose from. Master devices without an internal I/O module are also available for pure fieldbus applications. Up to 20 slave devices can be connected to a master device via a robust, real-time-capable extension bus using two-wire technology - distributed centrally or decentrally. This creates a highly flexible system that can be adapted precisely to the task at hand.

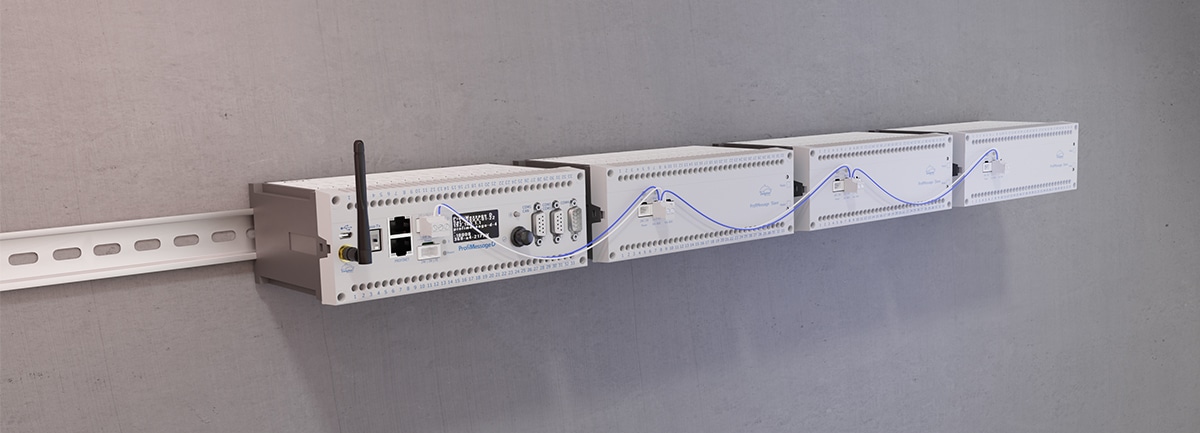

Modular measuring, monitoring and automation in one device.
ProfiMessage D - Master and slave devices

I/O-Modules Analog inputs Analog outputs Frequencies / Status inputs Status inputs Switch outputs Total sampling rate
ADGT 8 channels, V /mV, 20 mA, RTD, thermocouples 60 Hz
ADIT 10 channels, V / mV, 20 mA, RTD, thermocouples 1 channel 20 mA 1 channel 600 Hz
ADVP 15 channels, V / mV, 20 mA, RTD (max. 8), thermocouples 600 Hz
ADVT 15 channels, V / mV, 20 mA, thermocouples 600 Hz
AAST 4 channels, V /mV, 20 mA, RTD, thermocouples 4 channels 20 mA 2 channels 2 channels 600 Hz
IOIT 24 channels 1 channel
OTPT 1 channel 24 channels
DIOT 11 channels 1 channel 16 channels
