TELSHACK-D Wireless Crosby D Type Load Shackle
|
| |
|
|
| |
Description
The TELSHACK-D range of telemetry load shackles are manufactured using the Crosby™ G2150 shackles. Versions are also available using the popular GreenPin™ range of shackles. The built in radio telemetry electronics operates on the 2.4GHz license free frequency.
The unique telemetry housing is manufactured from tough high performance polyamide resin making it strong yet light, resulting in a better balanced load shackle when compared to others available on the market. Two clips enable you to open the housing to access and change the two AAA alkaline batteries, while the internal electronics underneath remain completely sealed. This includes the antenna to ensure maximum protection from damage.
The TELSHACK-D is supplied as standard without any additional wireless devices to enable greater flexibility with the configuration and ordering of the product. The TELSHACK-D can be used with any of the T24 range of wireless instrumentation, whether this be for a simple display system using the T24-HS-LS, or more complex systems using multiple load cells and multiple wireless devices.
For more sophisticated systems, including datalogging or monitoring/reporting requirements, we are able to offer a robust tablet PC with installed software for use with single or multiple load cell installations. Our sales team will be happy to discuss the best wireless system configuration to suit your requirements.
The TELSHACK-D series can be provided as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated.
|
| |
Features
 2.4GHz license free frequency- Continuous use battery life of 200 hours.(batteries are built-in & rechargeable)
- Environmentally sealed to IP67
- From 12 tonne to 35 tonnes
- High tensile carbon steel construction
- Many other telemetry configurations available
- Shackle and load pin fully certified
- Simple installation and operation
- Transmission range of up to 600 metres clear line of sight
- Wireless D type load shackle
|
| |
Specification
|
| |
Dimensions
|
| |
Options
|
| |
Applications
- Under-hook Hoist/Crane Lifting
- Cable Tension Monitoring
- Towing/Mooring Tension
- Beam proof loading
|
| |
| |
 |

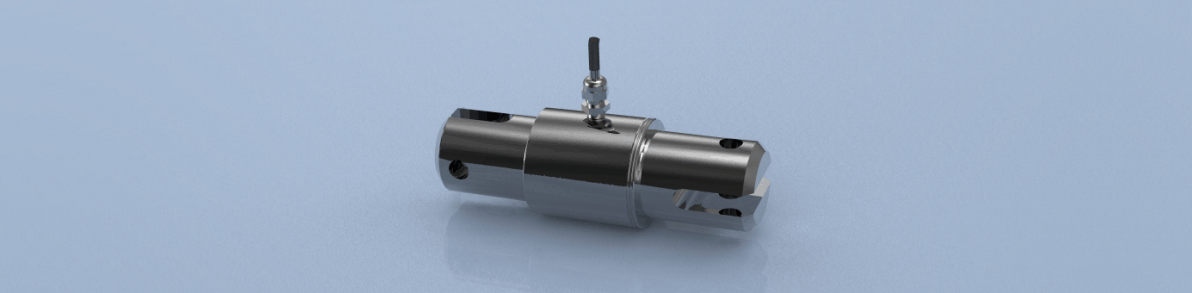

TOG Stainless Steel Toggle Load Link
|
|
|
|
|
|
► Ranges 750kg to 9500kg
► Stainless Steel Construction

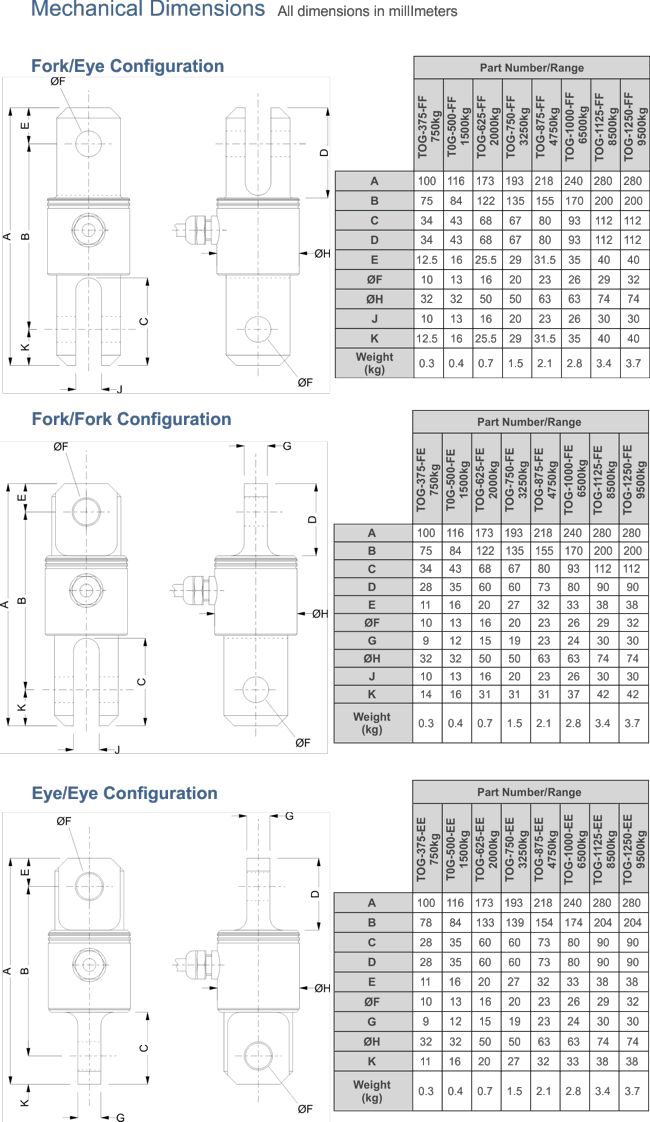

► Fork/Eye, Eye/Eye or Fork/Fork configuration available
► Environmentally Sealed to IP67 (IP68 can also be offered)
► Many special design options available
► Can be supplied with amplified output
► Can be supplied with integral connector
The LCM range of Tension Toggle Load cells have been designed for general use and are particularly suitable for permanent installations where wire loads are being measured. They are built to exacting standards and are suitable for use in exposed situations and can be supplied to withstand immersion in seawater. The TOG range can be supplied as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated. The TOG series can be supplied on it's own or combined with our extensive range of instrumentation to provide a complete load monitoring system.
|
| Back to Top |
|
| Rated Load (Kg) |
750, 1500, 2000, 3250, 4750, 6500, 8500, 9500 |
| Proof Load |
200% of Rated Load |
| Ultimate Breaking Load |
> 300% of Rated Load |
| Output |
1.0 mV/V at Rated Load (±10%) |
| Accuracy |
< ±0.20% of Rated Load |
| Non-Repeatability |
< ±0.04% of Rated Load |
| Excitation Voltage |
10vdc recommended, 15vdc maximum |
| Bridge Resistance |
350Ω |
| Insulation Resistance |
> 500MΩ @ 500vdc |
| Operating Temperature Range |
-20 to +70°C |
| Compensated Temperature Range |
-10 to +50°C |
| Zero Temperature Coefficient |
< ±0.010% of Rated Load/°C |
| Span Temperature Coefficient |
< ±0.010% of Rated Load/°C |
| Environmental Protection Level |
IP67 |
| Connection Type |
5 metres 4-core PUR cable |
| Wiring Connections |
| Red |
+ve supply |
Blue |
-ve supply |
| Green |
+ve signal |
Yellow |
-ve signal |
|
| Options Available |
Special electrical connections
Can be supplied with integral signal conditioning
Special ranges
Consult factory for any other special options |
|
| Back to Top |
|
 |
| Back to Top |
|
| ► Click here to download - TOG Datasheet |
|
► TR150 Battery Powered Handheld Portable Indicator
► SGA Strain Gauge Analogue Amplifier
► LCA15 Intelligent Strain Gauge Amplifier/Controller
► ADW15 Panel Mounting Load Cell Indicator/Controller
► MAX Modular Expandable Analogue Amplifier System |
|
► Structural Testing
► Mooring/Towing Monitoring
► Wire Rigging Tension Monitoring
► Wireline Measurement
► Anchor Line Tension |
| |
| |
|

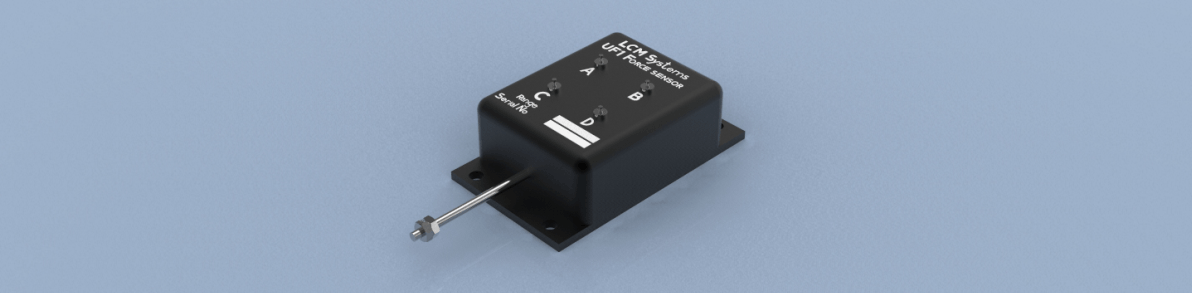

UF1 Low Range Isometric Force Sensor
|
|
|
|
|
|
► Ranges 25g (1oz) to 1500g (54oz)
► Low Deflection
► High Output Sensitivity
► High Overload Range
► Versatile signal connection method
► Versatile Mounting Arrangement
The LCM Systems UF1 series force sensors from the range of Pioden Transducers has been widely used in many applications for more than 40 years. The UF1 has proved the first choice for many applications including muscular and membrane movement monitoring, yarn and fabric tension control, fluid viscosity measurement and even the force induced in butterfly wings during flight. There are many other applications that the UF1 has been used in. It is most popular in applications where our customers need to measure small forces, with a good level of accuracy, minimal deflection and with a flexible mounting arrangement. The UF1 can be supplied on it's own or combined with any of LCM Systems wide range of instrumentation products to provide either a simple or more complex monitoring or control system.
|
| Back to Top |
|
| Range (FSO) |
25g, 55g, 110g, 220g, 450g, 1000g, 1500g
Equivalent to:- 1oz, 2oz, 4oz, 8oz, 18oz, 36oz, 54oz |
| Maximum Overload Range |
2500g for all ranges |
| Output Sensitivity |
4mV/V nominally |
| Zero Offset |
< ±2% FSO |
| Accuracy |
< ±0.3% FSO |
| Repeatability |
< ±0.1% FSO |
| Excitation Voltage |
10vdc maximum |
| Bridge Resistance |
25g, 55g, 450g:- nominally 725Ω
110g, 220g, 1000g, 1500g:- nominally 1000Ω |
| Insulation Resistance |
> 100MΩ at 50vdc |
| Operating Temperature Range |
-40°C to +80°C |
| Compensated Temperature Range |
+10°C to +60°C |
| Zero Temperature Coefficient |
< ±0.05% FSO/°C |
| Span Temperature Coefficient |
< ±0.05% FSO/°C |
| Environmental Protection Level |
IP51 |
| Deflection |
< ±0.03mm |
| Connection Type |
Via 4off PTFE insulated solder terminals
Pin A + Signal Pin B + Excitation
Pin C - Signal Pin D - Excitation
|
|
| Back to Top |
|
 |
| Back to Top |
|
| Click here to download - UF1 Datasheet |
| |
|
SGA Strain Gauge Analogue Amplifier
LCA15 Intelligent Strain Gauge Amplifier/Controller
TR150 Battery Powered Handheld Portable Indicator
ADW15 Panel Mounting Load Cell Indicator/Controller |
| |
|
► Isometric Force Measurement
► Muscle Contraction Measurement
► Textile Tension Measurement
► Torque Reaction Measurement |
| |
| |
 |
| |
BP16 Strain Gauge Pressure Transducer
|
| |
|
|
| |
Description
The LCM Systems range of Pioden transducers has been widely used for many years.
The BP16 range of pressure transducers combine the excellent performance of bonded foil strain gauge technology with a single piece stainless steel diaphragm construction. They provide a cost effectivet price/performance ratio and are suitable for use in many arduous measurement applications.
The BP16 construction makes it ideal for a wide range of applications, including hydraulic lifting, mobile hydraulic vehicles, portable test gear and air frame test rigs amongst others.
The most popular version of the BP16 is the integral cable version, which is supplied with a 2 metre PVC cable. An integral connector version is also available, as are versions with different cable lengths or different cable types. The BP16 offers a variety of amplified outputs in the same packaging arrangement (a separate data sheet is available detailing these).
|
| |
Features
- Rtings from 100psig to 15,000 psig
- Stainless steel diaphragm
- Strain gauge technology
|
| |
Options
- Integral connector option
- Modified cable length/type options
- Amplified output options
- TEDS option (when used with TR150 handheld display)
- Other special versions available
|
| |
| |
|
