DCE Stainless Steel Stud Type Tension and Compression Load Cell

Description

The LCM Systems DCE load cell has been developed for applications that require the measurement of tensile and compressive forces, where space is limited. As with most LCM products there are special variants that are available for this product. Popular variants include different thread sizes, integral connectors and high temperature versions.

Typical applications include component testing, weighing systems and general force measurement.

The DCE can be supplied on it's own or integrated with any of the wide range of instrumentation products available from LCM Systems.

Features

•  Different mounting options available
•  Environmentally sealed to IP65
•  Ratings from 100N to 50kN
•  Rationalised output option available
•  Special Sizes and ranges available
•  Stainless steel construction

Specification

Dimensions

Options

•  Special ranges and sizes available
•  Rationalised output available
•  Different thread sizes available
•  Integral connector option
•  High temperature variants
•  Different mounting options
•  TEDS option (when used with TR150 handheld display)

Applications

•  General Force Measurement
•  Wire Tension Measurement
•  Tensile Testing

PTC-1 Stainless Steel Low Profile Universal Load Cell

Description

The PTC-1 series of load cells are based on the conventional low profile or pancake load cell principle. The internal construction is a diaphragm design, offering a lower cost solution to conventional shear web designs, while still offering high natural frequency, low deflection and excellent resistance to side and torsion forces. The PTC-1 is constructed from stainless steel to give excellent corrosion protection. There is an optional mounting base available, which is required if the load cell is to be used in tension. The mounting base is also constructed from stainless steel.

The standard load cell is supplied with an integral cable and the facility to attach protective hose or conduit. It is ideally suited to many testing applications where high stability and low height are essential requirements. The PTC-1 can be supplied calibrated as a complete ready-to-go system. Also available is a range of associated instrumentation.

Please consult our sales department for any technical advice required on this product or the interfacing with our instrumentation.

Features

•  Environmentally sealed to IP66
•  From 5kN to 2000kN
•  High natural frequency
•  High thermal stability
•  Low Profile
•  Stainless steel construction

Specification

Dimensions

Options

•  Mounting base
•  Load cap assembly
•  Load button
•  Connector version

Applications

•  Structural Testing
•  Jack Load monitoring
•  Airframe Testing
•  Material Test Machine Feedback
•  Fatigue Testing Rigs

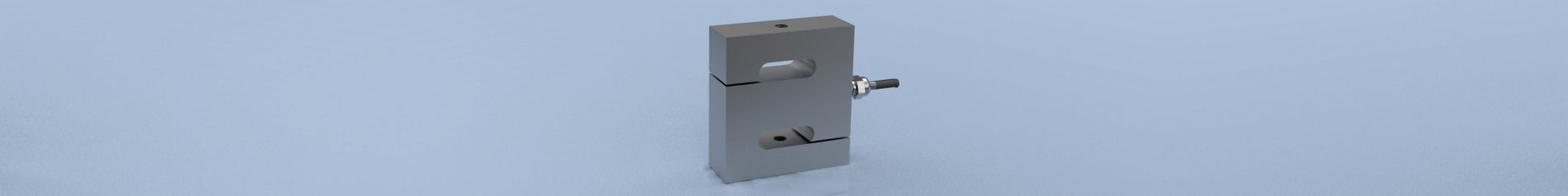

STA-1 S-Type Tension and Compression Load Cell

Description

The STA-1 series load cell is ideal for measuring both tensile and compressive forces. The standard metric threads at each end of the load cell are designed to accept standard spherical seating rod-end bearings.

The STA-1 is suitable for many applications where a tension and compression load cell is required for high accuracy measurements. Applications such as vessel weighing, material test machines and dynamometers are a few examples.

The STA-1 series can be supplied on it's own or combined with our extensive range of instrumentation to provide a complete load monitoring system.

Features

•  Aluminium alloy construction
•  Can be supplied complete with mating spherical rod-end bearings
•  Environmentally sealed to IP66
•  From 50kgs to 300kg

Specification

Dimensions

Options

•  Spherical seating rod end bearings
•  Compression load button
•  TEDS option (when used with TR150 handheld display)

Applications

•  Hanging scales
•  Material test machines
•  Engine/motor dynamometers
•  General force measurement

STA-2 S-Type Tension and Compression Load Cell

Description

The STA-2 series load cell is ideal for measuring both tensile and compressive forces. The standard metric threads at each end of the load cell are designed to accept standard spherical seating rod-end bearing.

The STA-2 is suitable for many applications where a tension and compression load cell is required for high accuracy measurements. Applications such as vessel weighing, material test machines and dynamometers are a few examples.

The STA-2 series can be supplied on its own or combined with our extensive range of instrumentation to provide a complete load monitoring system.

Features

•  Can be supplied complete with mating spherical rod-end bearing
•  Environmentally sealed to IP68
•  Fully welded stainless steel
•  Ratings from 250kgs to 20 tonnes

Specification

Dimensions

Options

•  Spherical seating rod end bearings
•  Compression load button
•  TEDS option (when used with TR150 handheld display)

Applications

•  Vessel weighing
•  Hanging scales
•  Multipoint structural weighing
•  Material/tensile test machines
•  General force measurement
