TELSHACK-B-HL Wireless Bow Type Heavy Lift Load Shackle
|
| |
|
|
| |
Description
The TELSHACK-B-HL range of telemetry load shackles are manufactured using the GN Rope H10 shackle. Suitable for use in a wide range of industrial and marine heavy lift weighing applications, these load shackles provide a robust and effective method of measuring large tensile loads. They are also particularly suited to offshore applications, as they include 3.1 material certification as standard and the proof load test and calibration can be witnessed by a 3rd party at LCM Systems.
The unique telemetry housing is manufactured from tough high performance polyamide resin making it strong yet light, resulting in a better balanced load shackle when compared to others available on the market. Two clips enable you to open the housing to access and change the two AAA alkaline batteries, while the internal electronics underneath remain completely sealed. This includes the antenna to ensure maximum protection from damage. The built in radio telemetry electronics operates on the 2.4GHz license free frequency.
The TELSHACK-B-HL is supplied as standard without any additional wireless devices to enable greater flexibility with the configuration and ordering of the product. The TELSHACK-B-HL can be used with any of the T24 range of wireless instrumentation, whether this be for a simple display system using the T24-HS-LS, or more complex systems using multiple load cells and multiple wireless devices.

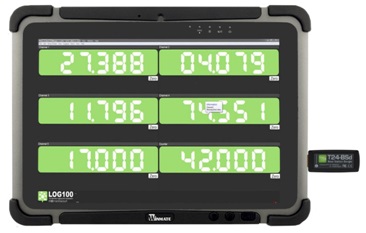

For more sophisticated systems, including datalogging or monitoring/reporting requirements, we are able to offer a robust tablet PC with installed software for use with single or multiple load cell installations. Our sales team will be happy to discuss the best wireless system configuration to suit your requirements.
The TELSHACK-B-HL series can be provided as shown in this datasheet or can be modified to meet a particular application requirement. We are always pleased to discuss any special requirements that can be accommodated.
|
| |
Features
 Continuous use battery life of 300 hours (with 1.2Ah batteries)- Environmentally sealed to IP67
- From 120 tonnes to 1000 tonnes
- GN Rope shackles
- High tensile carbon steel construction
- Optional load centralising bobbin
- Shackle and load pin fully certified
- Simple installation and operation
- Transmission range of up to 600 metres clear line of sight
- Wireless heavy lift shackle
|
| |
Specification
|
| |
Dimensions
|
| |
Options
- Special ranges and capacities up to 2000te
- Hazardous Area certified - Intrinsically Safe (Ex i)
- Centralising load bobbin
- Special telemetry systems available
- Lloyds, ABS, DNV or other third party witnessing
- Various wireless accessories available. See T24 range of wireless products
|
| |
Applications
- Towing/Mooring Tension
- Winch Load Monitoring
- Water Bag Testing
- Bollard Testing
|
| |
| |
 |
| |

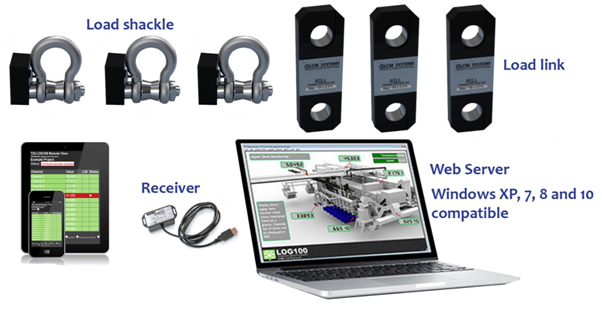

Stage load monitoring and limit alarm
|
| |
|
|
| |
 |
| |
|
Advantages
|
Load Shackles
|
Load Links |
 |
 |
Ranges 3.25tonne to 9.5tonne
T24-HS-LS hand-held display utilising 2.4GHz License Free Frequency
Stainless steel load pin
Environmentally sealed to IP67
Simple installation and operation
Continuous use battery life of 650 hours (with 2.3Ah batteries)
Shackle and load pin fully certified
Transmission range of up to 600 metres clear line of sight
Supplied with load centralising bobbin
Many other telemetry configurations available.
Machinery Directive 2006/42/EC compliant
|
Ranges 1 to 300 tonne
Lightweight Aluminium Construction
Shackle holes are steel bushed
Environmentally Sealed to IP67
License Free 2.4GHz radio
Can be supplied with various bespoke telemetry and/or software packages
|
|
The TELSHACK-B-JR range of telemetry load shackles are manufactured using the Crosby™ G2130 shackle. Suitable for use in a wide range of lower capacity industrial weighing applications, these load shackles are accurate, reliable and simple to install. They are particularly popular in theatrical applications for measuring the loads on rigging, hoists and stage lifts.
The IP67 rated telemetry housing is manufactured from ABS plastic making it strong yet light, and the telemetry electronics contained within are powered by two AA alkaline batteries. The unit also features an internal antenna for maximum protection from damage.
|

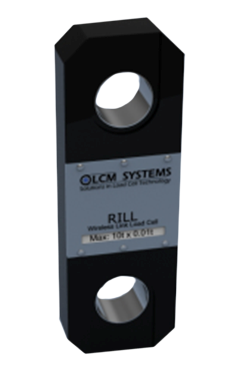

The LCM RILL series of wireless link load cells have been designed for lifting and weighing in rugged or harsh environments, being manufactured from high tensile aluminium to minimise weight (has steel bushes to provide added wear protection from shackles etc).
|
|
| |
|
Software
|
|
|

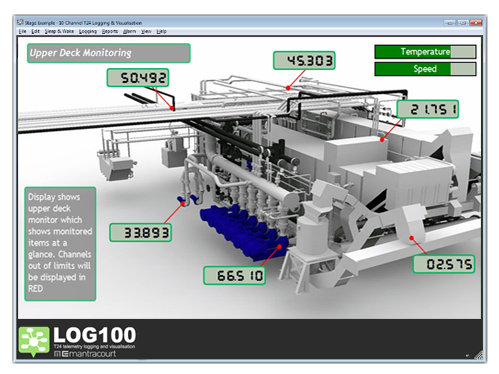

T24LOG100 has been designed to allow the logging and visualisation of up to 100 channels of data from the T24 Wireless Telemetry range of sensor transmitters.
A resizable window displays a table of up to 100 channels of data. Channels can be setup with user defined algorithms that can be used to calculate a multitude of maths functions. For example, a display can show the value from a single T24 transmitter module or the sum of multiple transmitters. Visual displays and audible alarms can indicate under and over range as well as loss in communications, low battery and error reports.
|
Once the display channels are defined the user can quickly build graphical pages showing the data in a variety of formats including digital display or bars. Up to eight pages can be defined and the pages easily navigated between. A variety of image formats can be imported, including JPG, GIF, PDF and DXF.
T24LOG100 can log on demand, at pre-set intervals, on entering and leaving a pre-set overload and during an overload. It creates a CSV file which can be loaded for analysis into software programs such as Microsoft Excel. JSON format data is also available on demand via the built in web server.
|
| |
|
Key Features & Benefits
|
|
Free 100 channel software
Displays and logs data from up to 100 wireless sensor transmitters from our T24 wireless range
Mapping / graphical capabilities
Centre of Gravity (COG) function
Webserver offers remote viewing on iPads/tablets/smart phones and also supplies JSON data on demand
Create reports for your customers and develop custom projects
Compatible with Windows XP, Vista, Windows 7, Windows 8 and Windows 10
Defined algorithms and maths function
Logging at timed intervals, manual or on overload/underload
Visual and audible alarms indicates over and under load
Visual alarm for low batteries and loss in communication
Zoom in to channel to see data trends and history
Quick & easy to install
Export and log data in CSV format
Centre of Gravity designer and functionality
|
|
| |
|
Solution for unpredictable load distribution
Safety for the performers and spectators are very important when considering the design of the truss set up. With tons of sound and lighting equipment hanging from the above, the need for even distribution of load is very important. The monitoring needs to have fast response due to the continuous movements of these audio visual (A/V) equipment.
There are situations whereby, due to the continuous movement of the A/V equipment, there would be uneven load distribution on one of the hoist and may reach its’ overload limit. Conditions may even worsen especially during outdoor set ups which are exposed to wind and snow build up on the roof. These conditions would greatly reduce the overload tolerance of the whole truss set up.
The solution is to identify the load distribution and ensuring safe installations during real-time performances.
|
| |
 |
| |
|
Mobility, Portability, User-Friendly
|
| |
| |
|
