Specifications

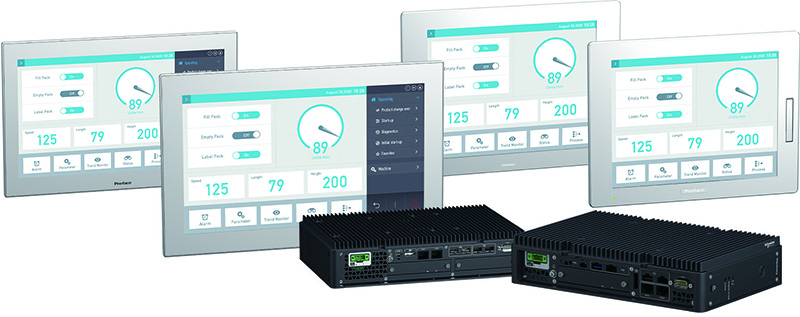

PS6000 Series Lineup/Specifications

Box Module

Type	OS	CPU	DIM	Storage	Interface	Slot-in Option I/F	Expansion slots	Details
Advanced Box	Windows10 IoT Enterprise 2019 LTSC (64bit)	Core i7	8 - 32GB	M.2 SSD x1 2.5" HDD/SSD x2	RS-232C x1, USB Type A: USB2.0 x2, USB3.0 x2, USB Type C: USB3.0 x1, Ethernet(RJ45) x2, DisplayPort x1	2 slots	PCI x1 + PCIe x1 or PCIe x2 or PCI x 2	Specification
		Core i5	8 - 32GB					Specification
		Celeron	4 - 16GB					Specification
Standard Box		Core i3	8 - 32GB	M.2 SSD x1 2.5" HDD/SSD x1		1 slots	-	Specification

The basic model (PS5000 Series Atom model) is now also available.

Display Module

Display Size	Resolution	Display Type	Touch Panel Type	Touch Mode Configuration	Front USB	Details
19" Wide	Full HD (1,920 x 1,080)	TFT Color LCD	Capacitive Multi-touch (2 points) with optimized noise filer	Yes -Standard mode -Glove mode, -Water detection mode	-	Specification
15" Wide	FWXGA (1,366 x 768)			Yes -Standard mode -Glove mode, -Water detection mode	-	Specification
15"	XGA (1024 x 768)		Resistive multi-touch (2 points)	Not applicable, because of a resistive analog touch panel	USB(Type A) x1*1	Specification
12"	XGA (1024 x 768)		Resistive multi-touch (2 points)	Not applicable, because of a resistive analog touch panel	USB(Type A) x1*1	Specification

*1By default, the USB is disabled
