Powerful confocal chromatic controllers - precision meets compactness Product Technology

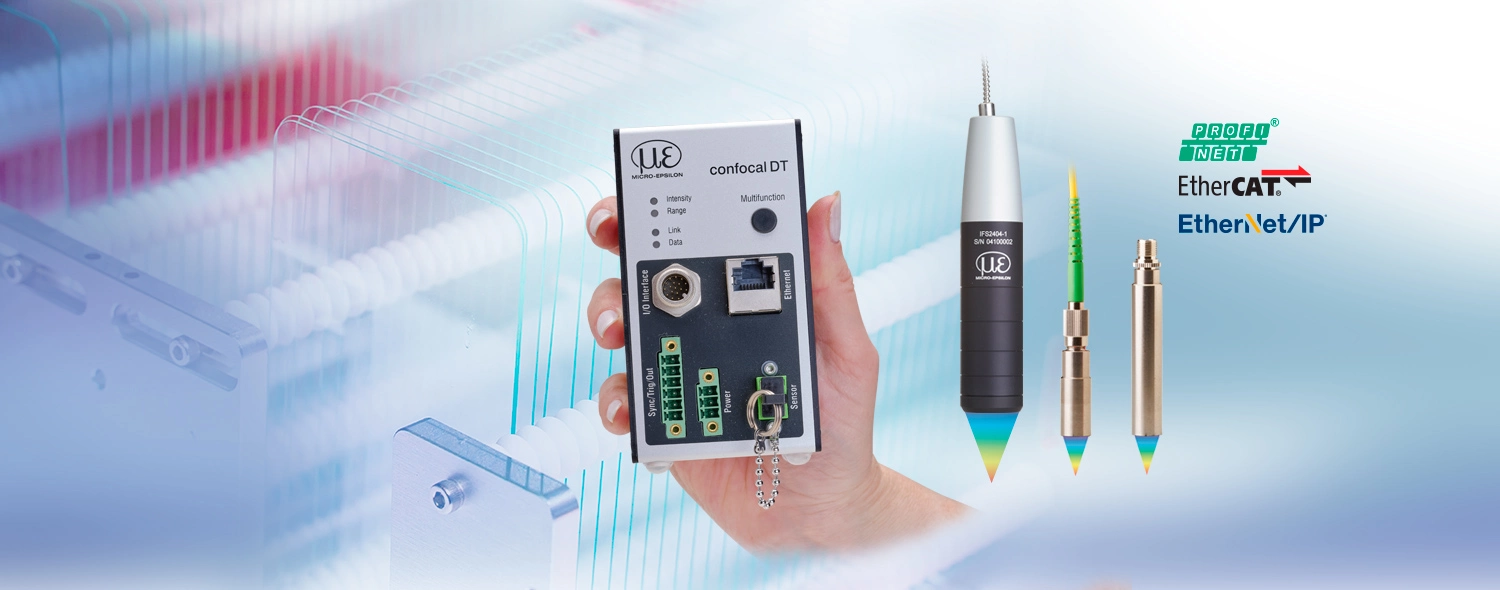

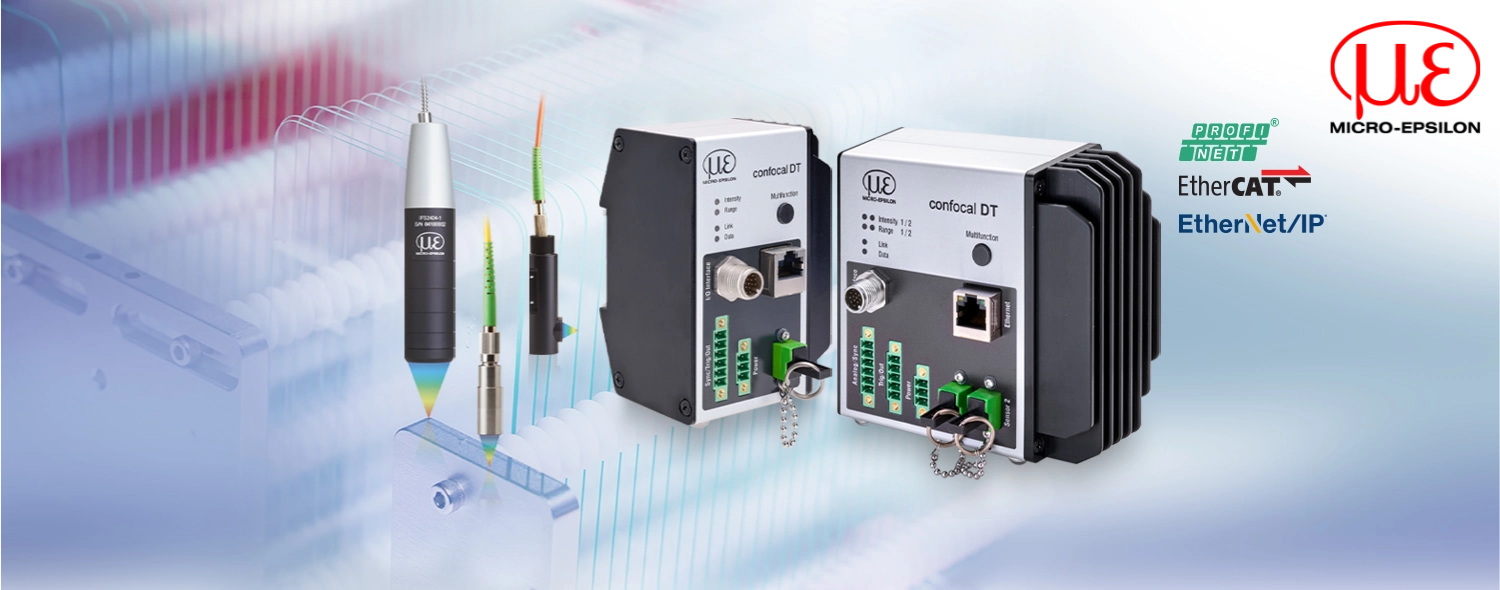

The compact IFC2411 confocal chromatic controllers set new standards in non-contact distance measurement. They provide precise measurement results at high speed, take up hardly any space and therefore fit into even the smallest control cabinets. The flexible connection of various sensors enables measurements on almost all surfaces as well as one-sided thickness measurements on transparent objects. The system is particularly impressive in industrial series and OEM applications due to its excellent performance and outstanding price-performance ratio. Rely on maximum measurement accuracy in a space-saving format - for optimum efficiency in your production!

Characteristics

High-precision measurements with 2 nm resolution
Adjustable measuring rate up to 8 kHz for dynamic measurements
Smallest confocal controller worldwide
IP40 aluminum housing
Numerous interfaces for easy integration: Ethernet, RS422, Industrial Ethernet
Analog output (current & voltage)
Encoder input
Compatible with all confocalDT sensors (measuring ranges from 0.1 to 30 mm)
Ideal for series applications and OEM

Developed for industry, OEM & automation

Equipped with various interfaces, the controller offers maximum flexibility for integration into machines and systems. Its robust IP40 aluminum housing ensures maximum protection even under harsh conditions, so that highest precision and signal stability can be achieved. The excellent price-performance ratio enables economical solutions from small to large series.

Smallest controller in the world

Its extremely compact and worldwide unique design allows for the controller to be easily integrated into existing installations and systems. The housing is up to 300% smaller than comparable controllers and extremely lightweight at 460 grams. It can be quickly mounted on a DIN rail and fits into even the smallest control cabinets.

Ease of use via web interface

Due to a user-friendly web interface, the entire configuration process is carried out without using any additional software. The web interface can be accessed via Ethernet and provides set up and configuration options. Materials are stored in an expandable materials database.
