    OVERVIEW



    Features

    • Pressure measuring range: 100 mbar … 1000 bar
    • Accuracy: ≤ ± 0.10 / 0.05 % FS
    • Operating temperature: -40 … 125°C
    • Process temperature: -40 … 150°C
    • Output signal: 0 … 5 / 0 … 10 VDC, 4 … 20 mA
    • Total Error Band: ≤ ± 0.30 %FS (0 … 70°C)
    • Materials: Stainless steel, Titanium
    •

    Customer benefits



    • Pressure measuring range: 100 mbar … 1000 bar
    • Accuracy: ≤ ± 0.10 / 0.05 % FS
    • Operating temperature: -40 … 125°C
    • Process temperature: -40 … 150°C
    • Output signal: 0 … 5 / 0 … 10 VDC, 4 … 20 mA
    • Total Error Band: ≤ ± 0.30 %FS (0 … 70°C)
    • Materials: Stainless steel, Titanium
    Back to Top

    SPECIFICATIONS

    Pressure measuring range (bar)

      0.1 ... 0.5 (1) > 0.5 ... 2 > 2 ... 100
    Overpressure 3 bar 3 x FS (≥ 3 bar) 3 x FS
    Burst pressure, (5) > 200 bar > 200 bar > 850 bar
    Accuracy, (6), (± % FS) ≤ 0.10 ≤ 0.10 / ≤0.05 (9) ≤ 0.10 / ≤0.05 (9)
    Total Error, (7),
    (± % FS ; typ. / max.)

    -25...100 °C compensated / Allowed process temperature -40...150°C, (8) ≤ 1.3 / 1.5 ≤ 0.75 / 1.0 ≤ 0.75 / 1.0
    -25...100 °C compensated / Allowed process temperature -40...150°C, (9) n.a. ≤ 0.3 / 0.6 ≤ 0.3 / 0.6
    -40...125 °C compensated / Allowed process temperature -40...150°C, (9) n.a. ≤ 0.5 / 0.8 ≤ 0.5 / 0.8
    -40...100°C compensated / Allowed process temperature -40...150°C, (8) ≤ 1.5 / 2.0 ≤ 1.0 / 1.5 ≤ 1.0 / 1.25
    0...70 °C compensated / Allowed process temperature -40...150°C, (8) ≤ 0.5 / 1.0 ≤ 0.2 / 0.4 ≤ 0.1 / 0.3
    0...70 °C compensated / Allowed process temperature -40...150°C, (9) n.a. ≤ 0.1 / 0.2 ≤ 0.1 / 0.2
    Response time, (typ.) < 1ms / 10...90% FS < 1ms / 10...90% FS < 1ms / 10...90% FS
    Long term stability, (10) < 0.5% FS / < 4 mbar < 0.2% FS / < 4 mbar < 0.1% FS / < 0.2% FS
      > 100 ... 600, (2), (4) > 600 ... 1000, (3)
    Overpressure 3 x FS (≤ 850 / ≤ 1500 bar) 1500 bar
    Burst pressure, (5) > 850 / ≤ 1500 bar > 1500 bar
    Accuracy, (6), (± % FS) ≤ 0.10 ≤ 0.25
    Total Error, (7),
    (± % FS ; typ. / max.)

    -25...100 °C compensated / Allowed process temperature -40...150°C, (8) ≤ 0.75 / 1.0 ≤ 0.75 / 1.0
    -25...100 °C compensated / Allowed process temperature -40...150°C, (9) n.a. n.a.
    -40...125 °C compensated / Allowed process temperature -40...150°C, (9) n.a. n.a.
    -40...100°C compensated / Allowed process temperature -40...150°C, (8) ≤ 1.0 / 1.25 ≤ 1.0 / 1.25
    0...70 °C compensated / Allowed process temperature -40...150°C, (8) ≤ 0.3 / 0.5 ≤ 0.3 / 0.5
    0...70 °C compensated / Allowed process temperature -40...150°C, (9) n.a. n.a.
    Response time, (typ.) < 1ms / 10...90% FS < 1ms / 10...90% FS
    Long term stability, (10) < 0.1% FS / < 0.2% FS < 0.1% FS / < 0.2% FS

    Temperature range


    Operating temperature -40...125 °C
    Process temperatur -40...150 °C
    Storage temperatur -40...125 °C

    Electrical specifications

      4 ... 20 mA 0 ... 5 V 0 ... 10 V
    Power supply 9…33 V DC 10...30 V DC 12...30 V DC
    Supply influence < 0.05% FS < 0.05% FS < 0.05% FS
    Current consumption

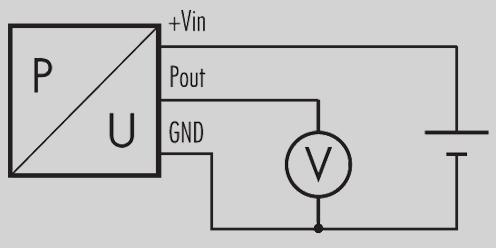

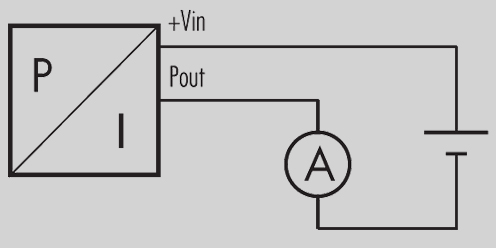

    Circuit diagram

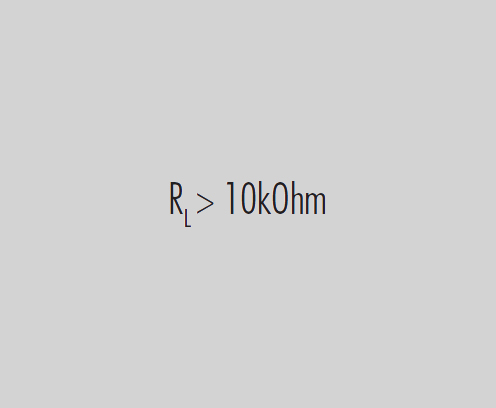

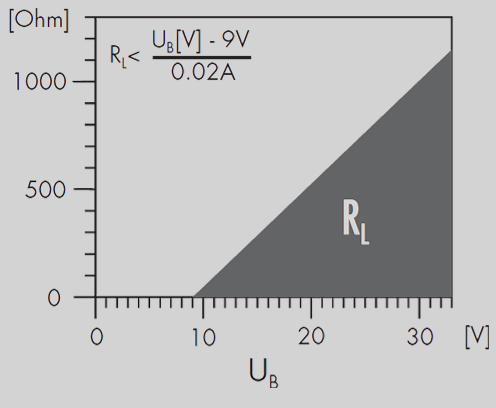

    Load resistance
    Load influence < 0.05% FS < 0.05% FS < 0.05% FS

    Physical specifications
