    OPEN-STANDARD,  ULTRA-LOW POWER AND RELIABLE WIFI SENSORS

    Until now, Wifi technology was extremely energy greedy and unreliable. Users working on structural health monitoring and condition monitoring were more inclined to deploy proprietary wireless sensor networks offering a better reliability and a low power operation.

    Thanks to more than 8 years of experience in sensing technology, our research and development team worked intensively with our customers on WILOW® (for Wifi Low Power) technology, a new generation of WIFI sensors (vibration, inclination and shock) which is reliable, ultra-low power and open-standard.

    WILOW® sensors revolutionize sensing technology by bringing outstanding features:

    ULP (Ultra Low Power)
    Wifi Technology - IEEE 802.11 b/g/n
    ( 2.4 Ghz frequency band )

    Rugged aluminum casing
    Waterproof IP67 | NEMA 6
    Embedded Data Logger:
    up to 5 million data points (with events dating)

    USB 2.0 for device configuration
    ( including firmware update )
    Smart and flexible power supply,
    compatible with USB and Solar power sources.

    Store and Forward+:
    Lossless data transmission
    with hard real-time
    SSD (Smart Shock Detection), WILOW® sensor
    can wakeup on shock detection
    (software configurable)

    IIOT Ready: Integrated MQTT data exchange,
    lightwheight and open-source Industrial
    Internet of Things ( IIOT ) protocol
    Industrial temperature range -40 °C to +65 °C   Onboard SNTP (Simple Net Time Protocol) Client
    Precision Time Protocol
    over Wifi Network ( ±30ms of precision )


    By connecting WILOW® sensors to existing WIFI infrastructure, user can benefit from a rapid return on investment:

    • Lower total cost of ownership-works
     Large installed base and consequent broad-based familiarity with configuration, use & troubleshooting at the physical and link layers
    • Easy provisioning & IT friendly: WILOW® sensors use IP-over-Ethernet networking environment

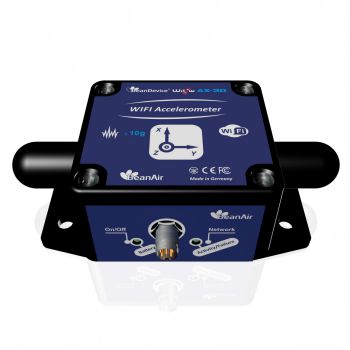

    Beandevice  AX-3D

    Ultra-Low-Power
    Wifi accelerometer
    with built-in data logger

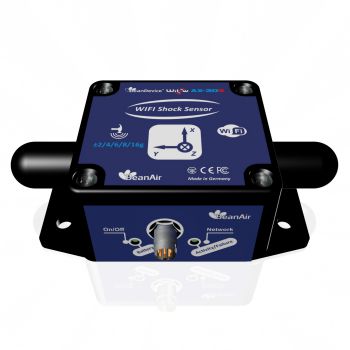

    Beandevice  AX-3DS

    Ultra-Low-Power
    Wifi Shock Sensor
    with built-in data logger

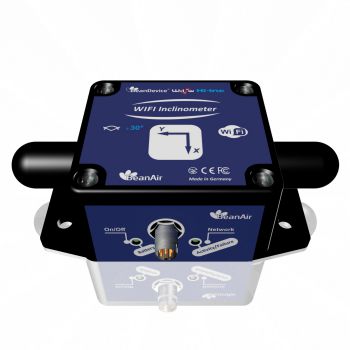

    Beandevice  Hi-Inc

    Ultra-Low-Power
    Wifi inclinometer
    with built-in data logger

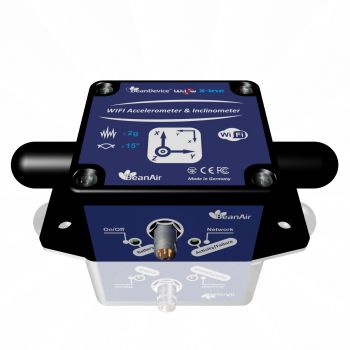

    Beandevice  X-Inc

    Ultra-Low-Power
    WIFI combo sensors (accelerometer, inclinometer & shock)
    with built-in data logger

    GET READY FOR INDUSTRIAL INTERNET OF THINGS (IIOT)
    Ready for Industrial Internet of things (IIOT) applications, WiLow® sensors integrate natively MQTT (Message Queuing Telemetry Transport) data frame, a lightweight and open-source (OASIS & ISO/IEC 20922:2016 standards) Internet of Things protocol.

    MQTT is based on publish/subscribe paradigm, therefore user can easily connect, configure and manage several WiLow® sensors at the same time from a unique IOT software platform.

    Users looking for a high level of security can count on a mechanism to notify interested parties to an abnormal disconnection of a client using the Last Will and Testament feature.

    No need to spend several months to develop a specific and complex supervision software, user can easily integrate WiLow® sensors in a third-party IOT Cloud platform (Amazon web services, IBM Watson, Microsoft Azure, Facebook Messenger, Alibaba Cloud….).

    Non-developer users can still use the BeanScape® software to setup a quick and affordable Wifi sensor network.

    TRIGGER YOUR DATA ACQUISITIONS ON A SHOCK DETECTION
    Ready for Industrial Internet of things (IIOT) applications, WiLow® sensors integrate natively MQTT (Message Queuing Telemetry Transport) data frame, a lightweight and open-source (OASIS & ISO/IEC 20922:2016 standards) Internet of Things protocol.

    MQTT is based on publish/subscribe paradigm, therefore user can easily connect, configure and manage several WiLow® sensors at the same time from a unique IOT software platform.

    Users looking for a high level of security can count on a mechanism to notify interested parties to an abnormal disconnection of a client using the Last Will and Testament feature.

    No need to spend several months to develop a specific and complex supervision software, user can easily integrate WiLow® sensors in a third-party IOT Cloud platform (Amazon web services, IBM Watson, Microsoft Azure, Facebook Messenger, Alibaba Cloud….).

    Non-developer users can still use the BeanScape® software to setup a quick and affordable Wifi sensor network.

    A RELIABLE WIFI TECHNOLOGY THANKS TO OUR STORE AND FORWARD+” FUNCTION

    The store and forward technique works by storing the message transmitted by WILOW® sensors to a Wifi access point/ Wifi receiver. If the message is not received due to a network disruption, it will be retransmitted on the next transmission cycle. This technique allows to bring a lossless data transmission.

    User can also enable the hard-real-time option; i.e. the message must be received by the Wifi Access Point/Wifi Receiver within the confines of a stringent deadline. It is automatically deleted if it failed to reach its destination within the allotted time span.

    SMART AND FLEXIBLE POWER SUPPLY

    WILOW® sensors can be power supplied from different power sources:

    • Internal rechargeable Lithium-Polymer battery
    • USB 5VDC power supply, therefore compatible with any kind of USB power bank available on the market
    • External power supply 4.5VDC up to 17 VDC including solar panel, no need to use an external solar power manager
