Jr S-beam Load Cell

LSB200

Catalog

How it Works

  1. 1. Laboratory equipment, such as dialysis machines or patient monitoring devices, often use test and measurement products either within the machinery or for quality testing.

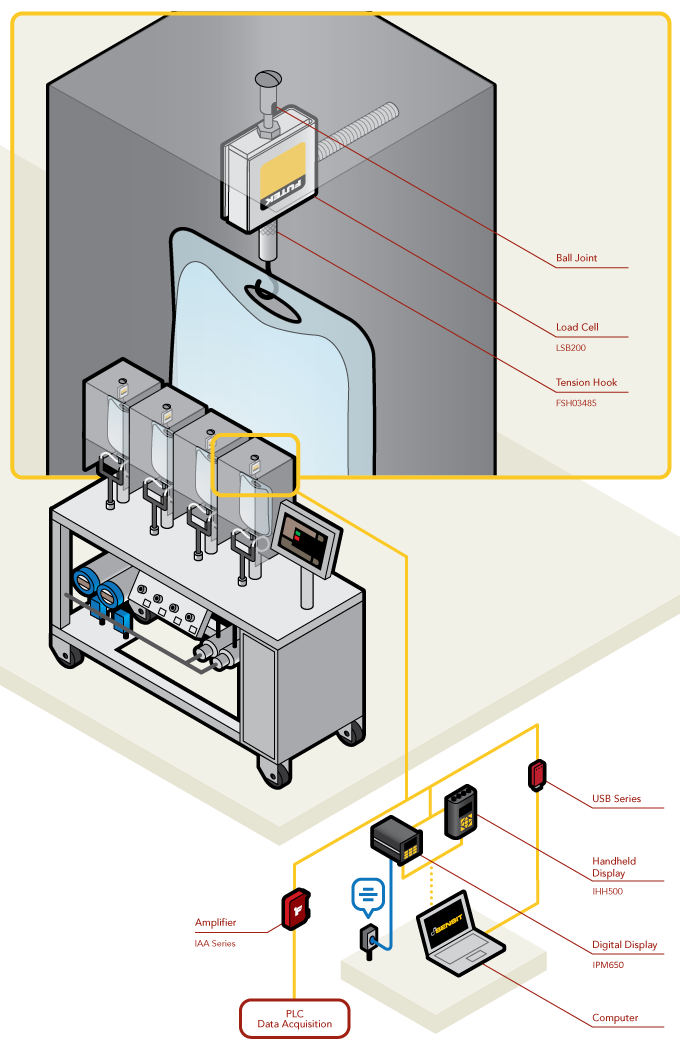

  2. 2. In this illustration, FUTEK’s LSB200 Miniature S-Beam Jr. Load Cell has been mounted to the fixture frame of the IV bag weighing apparatus.
  3. 3. Utilizing a LSB200 accessory hook, the IV bag can then be anchored to the load cell.
  4. 4. The LSB200, equipped with built-in overload protection, will then measure the tensile force applied, streaming the data to any of the following instruments: IAA Amplifiers, IHH500, IPM650 or USB Solutions
  5. 5. If utilizing either of FUTEK's digital displays or USB solutions, options exist for technicians to record results, log and graph data with SENSIT Test and Measurement Software.
